Part Details | TORSION HELICAL SPRING
5360-00-056-3335 An open-or close-wound coil spring consisting of one or more helical coils, wound from different shapes and types of material and finished at the ends, designed to exert pressure in a rotating direction around the coil axis. Excludes springs designed for thermal actuation (springs in which the torsion forces are counteracted by changes in temperature) and SPRING, REINFORCING, HOSE.
Alternate Parts: 53414393, 53-41439-3, 5360-00-056-3335, 00-056-3335, 5360000563335, 000563335
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-056-3335 | 04228 ( SPRING, HELICAL, TORSION ) |
REFERENCE DRAWINGS & PICTURES
SQUARE TYPE

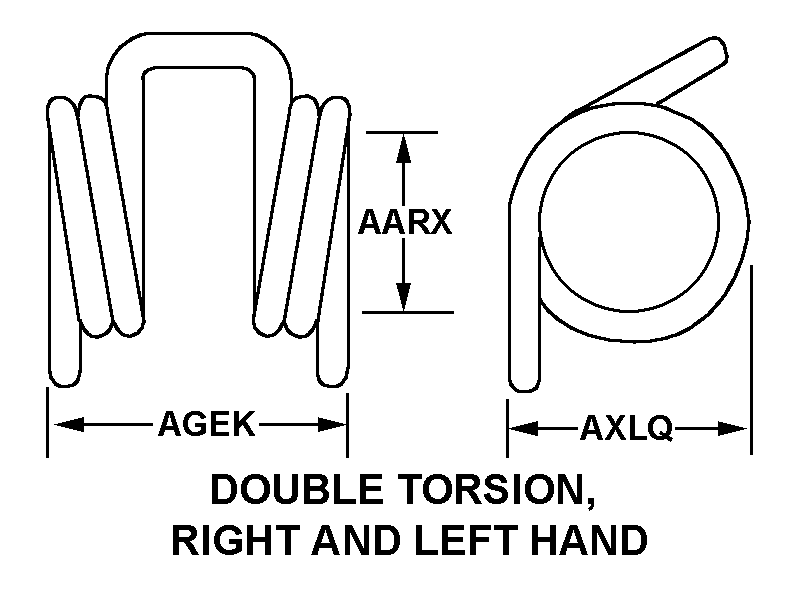

DOUBLE TORSION, RIGHT AND LEFT HAND
Cross Reference | NSN 5360-00-056-3335
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 53-41439-3 | 76301 | BOEING COMPANY, THEDBA BOEING |
Technical Data | NSN 5360-00-056-3335
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | DOUBLE TORSION, RIGHT AND LEFT HAND |
| INSIDE DIAMETER | 0.317 INCHES NOMINAL |
| SPRING FREE LENGTH | 1.430 INCHES NOMINAL |
| SPRING FREE OUTSIDE DIAMETER | 0.443 INCHES NOMINAL |
| CENTER SECTION WIDTH | 0.796 INCHES NOMINAL |
| COIL AXIS TO CENTER SECTION DISTANCE | 1.250 INCHES NOMINAL |
| COIL HELIX DIRECTION | L$G |
| CENTER STYLE | SQUARE TYPE |
| COIL QUANTITY | 4 |
| SPRING DEFLECTION RATE | 11.000 POUNDS PER INCH NOMINAL |
| END ANGULAR RELATIONSHIP | ENDS PARALLEL ONE TO OTHER |
