Part Details | NONPRECISION WIRE WOUND VARIABLE RESISTOR
5905-00-055-3074 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus of minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, NONWIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND, PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION.
Alternate Parts: PC672076, PC67207-6, PC672076, PC67207-6, 5905-00-055-3074, 00-055-3074, 5905000553074, 000553074
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-055-3074 | 37406 ( RESISTOR, VARIABLE, WIRE WOUND, NONPRECISION ) |
REFERENCE DRAWINGS & PICTURES

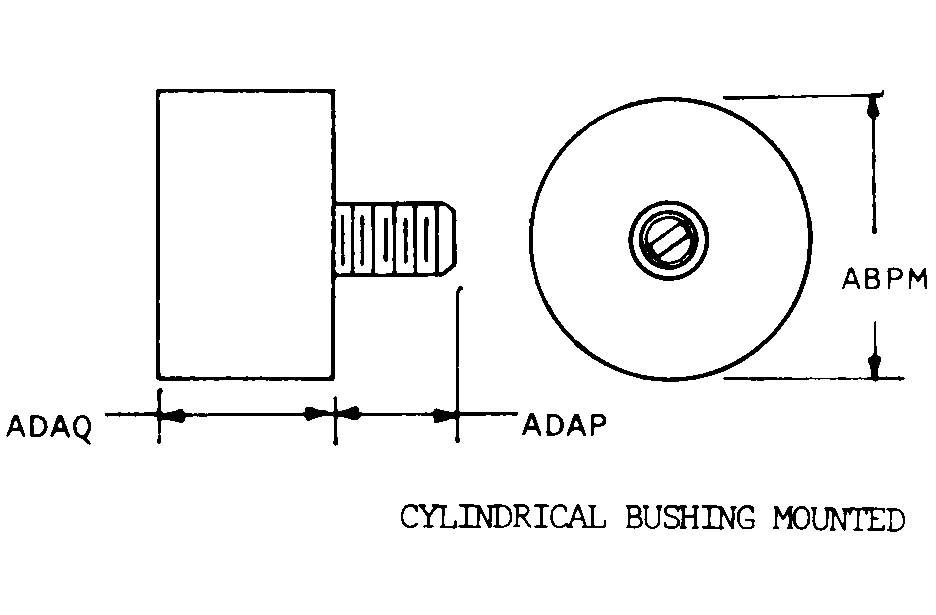

CYLINDRICAL BUSHING MOUNTED
Cross Reference | NSN 5905-00-055-3074
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PC67207-6 | K2555 | G E C MARCONI COMMUNICATIONS LTD |
| PC67207-6 | U2248 | LEONARDO MW LTD |
Technical Data | NSN 5905-00-055-3074
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 1 |
| ELECTRICAL RESISTANCE PER SECTION | 50.0 KILOHMS SINGLE SECTION |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -20.0 TO +20.0 SINGLE SECTION |
| POWER DISSIPATION RATING PER SECTION IN WATTS | 0.5 FREE AIR SINGLE SECTION |
| BODY STYLE | CYLINDRICAL BUSHING MOUNTED |
| BODY DIAMETER | 0.500 INCHES NOMINAL |
| BODY LENGTH | 0.500 INCHES NOMINAL |
| MOUNTING BUSHING LENGTH | 0.250 INCHES NOMINAL |
| ACTUATOR TYPE | FLUSH DRIVE WITH SLOT-HOLE |
| ROTARY ACTUATOR TRAVEL IN ANGULAR DEG | 320.0 NOMINAL |
| ACTUATOR TRAVEL CONTROL FEATURE | STOPS |
| EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION | 320.0 NOMINAL |
| MOUNTING METHOD | STANDARD BUSHING |
| SCREW THREAD SERIES DESIGNATOR | UNC |
| SCREW THREAD DIAMETER | 0.112 INCHES NOMINAL |
| SCREW THREAD QUANTITY PER INCH | 40.0 |
| TERMINAL TYPE AND QUANTITY | 2 TAB, SOLDER LUG |
| TERMINAL LOCATION | REAR END |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| SPECIAL FEATURES | CASE GROUNDED TERMINAL |
