Part Details | PRECISION WIRE WOUND VARIABLE RESISTOR
5905-00-816-4351 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity) of the output is equal to or less than plus or munus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE, For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, NONWIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND, PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, NONPRECISION.
Alternate Parts: 828529, 5905-00-816-4351, 00-816-4351, 5905008164351, 008164351
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1962 | 00-816-4351 | 37408 ( RESISTOR, VARIABLE, WIRE WOUND, PRECISION ) |
REFERENCE DRAWINGS & PICTURES
CYLINDRICAL SERVO MOUNTED

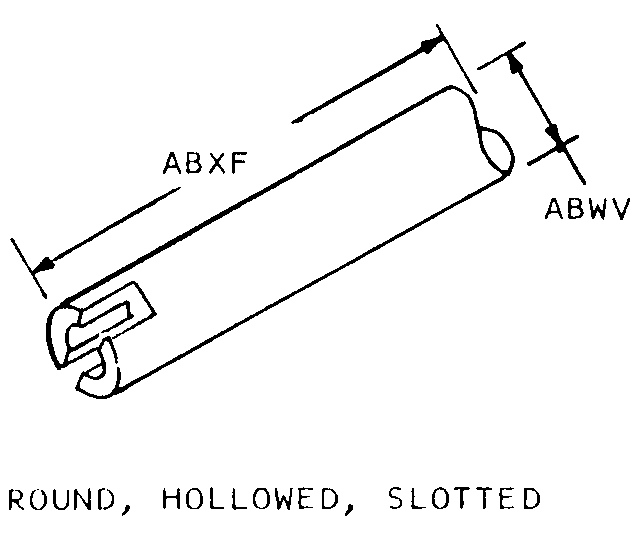

ROUND, HOLLOWED, SLOTTED
Cross Reference | NSN 5905-00-816-4351
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 828529 | 06141 | L3 AVIATION PRODUCTS, INC. |
Technical Data | NSN 5905-00-816-4351
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 1 |
| ELECTRICAL RESISTANCE PER SECTION | 2.5 KILOHMS SINGLE SECTION |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -5.0 TO +5.0 SINGLE SECTION |
| FUNCTION CONFORMITY PER SECTION | SINGLE SECTION INDEPENDENT LINEARITY |
| FUNCTION CHARACTERISTIC PER SECTION | SINGLE SECTION LINEAR |
| FUNCTION CONFORMITY TOLERANCE PER SECTION | -0.15 TO +0.15 SINGLE SECTION |
| MAXIMUM STARTING TORQUE | 3.50 INCH-OUNCES |
| MAXIMUM RUNNING TORQUE | 2.50 INCH-OUNCES |
| POWER DISSIPATION RATING PER SECTION IN WATTS | 5.0 FREE AIR SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER | 40.0 SINGLE SECTION |
| BODY STYLE | CYLINDRICAL SERVO MOUNTED |
| PILOT DIAMETER | 0.7490 INCHES MINIMUM AND 0.7500 INCHES MAXIMUM |
| PILOT LENGTH | 0.0620 INCHES NOMINAL |
| UNDERCUT DIAMETER | 1.820 INCHES MAXIMUM |
| UNDERCUT WIDTH | 0.0620 INCHES NOMINAL |
| BODY DIAMETER | 2.000 INCHES NOMINAL |
| BODY LENGTH | 4.234 INCHES NOMINAL |
| MOUNTING LIP DIAMETER | 1.8740 INCHES MINIMUM AND 1.8750 INCHES MAXIMUM |
| MOUNTING LIP DEPTH | 0.0620 INCHES NOMINAL |
| ANGLE OF MOUNTING HOLE IN DEG | 30.0 |
| ANGLE BETWEEN CENTERLINES OF MOUNTING HOLES IN DEG | 120.0 |
| MOUNTING HOLE/STUD CIRCLE DIAMETER | 1.250 INCHES NOMINAL |
| ACTUATOR TYPE | SINGLE SHAFT |
| SHAFT STYLE | ROUND, HOLLOWED, SLOTTED |
| SHAFT DIAMETER | 0.250 INCHES NOMINAL |
| SHAFT LENGTH | 1.188 INCHES NOMINAL |
| ROTARY ACTUATOR TRAVEL IN ANGULAR DEG | 9000.0 NOMINAL |
| ACTUATOR TRAVEL CONTROL FEATURE | CLUTCH |
| EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION | 9000.0 NOMINAL |
| MOUNTING METHOD | CX ANY ACCEPTABLE AND HF ANY ACCEPTABLE |
| MOUNTING FACILITY QUANTITY | 3 |
| SCREW THREAD SERIES DESIGNATOR | UNC |
| SCREW THREAD DIAMETER | 0.156 INCHES NOMINAL |
| SCREW THREAD QUANTITY PER INCH | 32.0 |
| FEATURES PROVIDED | NONMETALLIC SHAFT |
| TERMINAL TYPE AND QUANTITY | 3 TAB, SOLDER LUG |
| TERMINAL LOCATION | LONGITUDINALLY POSITIONED ON THE CIRCUMFERENCE |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| OVERALL LENGTH | 4.234 INCHES NOMINAL |
| OVERALL DIAMETER | 1.820 INCHES NOMINAL |
