Part Details | NONPRECISION NONWIRE WOUND VARIABLE RESISTOR
5905-00-867-7708 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus or minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, WIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION.
Alternate Parts: 210100, 210100, 210100, 5905-00-867-7708, 00-867-7708, 5905008677708, 008677708
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1960 | 00-867-7708 | 37405 ( RESISTOR, VARIABLE, NONWIRE WOUND, NONPRECISION ) |
REFERENCE DRAWINGS & PICTURES
CYLINDRICAL BUSHING MOUNTED

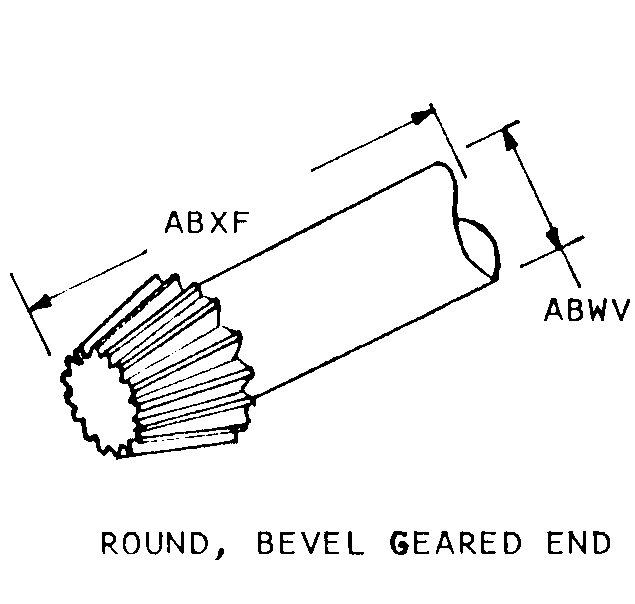

ROUND, BEVEL GEARED END
Cross Reference | NSN 5905-00-867-7708
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 210100 | 49671 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
| 210100 | 21921 | RCA CORPDISTRIBUTOR AND SPECIAL PRODUCTS DIV |
| 210100 | 41226 | VIZ MFG CO INC |
Technical Data | NSN 5905-00-867-7708
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 1 |
| ELECTRICAL RESISTANCE PER SECTION | 15.0 KILOHMS SINGLE SECTION |
| BODY STYLE | CYLINDRICAL BUSHING MOUNTED |
| BODY DIAMETER | 0.938 INCHES NOMINAL |
| BODY LENGTH | 0.436 INCHES NOMINAL |
| MOUNTING BUSHING LENGTH | 0.377 INCHES NOMINAL |
| ACTUATOR TYPE | SINGLE SHAFT |
| SHAFT STYLE | ROUND, BEVEL GEARED END |
| SHAFT DIAMETER | 0.244 INCHES NOMINAL |
| SHAFT LENGTH | 0.761 INCHES NOMINAL |
| MOUNTING METHOD | STANDARD BUSHING |
| TERMINAL TYPE AND QUANTITY | 3 TAB, SOLDER LUG |
| TERMINAL LOCATION | RADIALLY POSITIONED OVER LESS THAN HALF THE CIRCUMFERENCE |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
