Part Details | CAPACITOR-RESISTOR
5915-00-175-8657 An item consisting of one or more capacitors and one or more resistors molded together, housed together in a common case, or mounted on a common board. The individual capacitors and resistors are not separable and the overall item usually has various design applications; hence, cannot be considered a subassembly. Do not use if more applicable item names, such as FILTER (as modified), or NETWORK (as modified), exist.
Alternate Parts: YRE16101C5L, YRE161-01C5L, 18100003, 1810-0003, 18100003, 1810-0003, 5915-00-175-8657, 00-175-8657, 5915001758657, 001758657
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | DEC 10, 1971 | 00-175-8657 | 05090 ( CAPACITOR-RESISTOR ) |
REFERENCE DRAWINGS & PICTURES

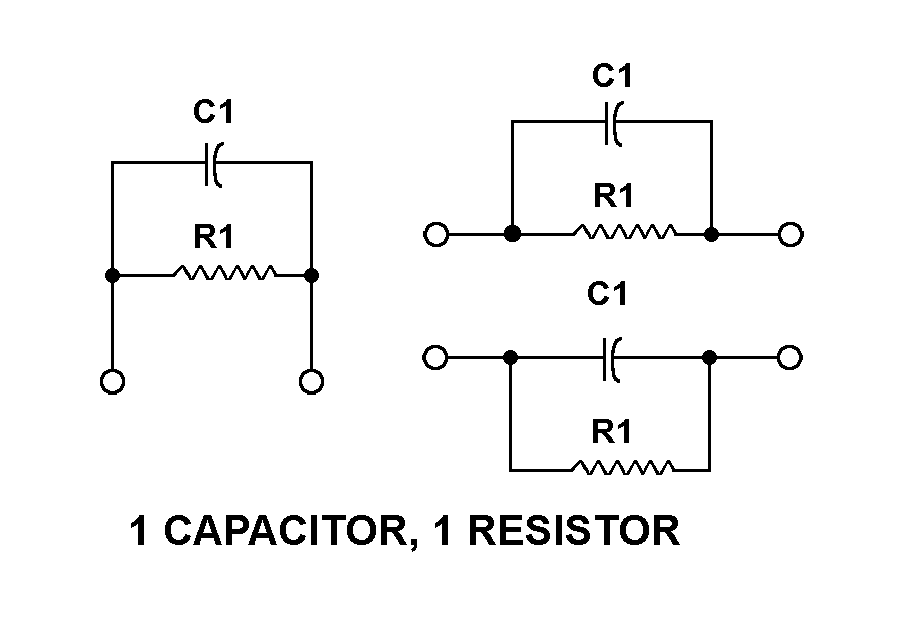

1 CAPACITOR, 1 RESISTOR
Cross Reference | NSN 5915-00-175-8657
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| YRE161-01C5L | 71590 | CRL COMPONENTS INC |
| 1810-0003 | 28480 | HEWLETT-PACKARD COMPANYDBA HP |
| 1810-0003 | 1LQK8 | KEYSIGHT TECHNOLOGIES, INC. |
Technical Data | NSN 5915-00-175-8657
| Characteristic | Specifications |
|---|---|
| SCHEMATIC DIAGRAM DESIGNATOR | 8 1 CAPACITOR, 1 RESISTOR |
| CAPACITANCE VALUE PER FUNCTION | 1000.0 PICOFARADS CAPACITOR C1 |
| CAPACITANCE TOLERANCE PER FUNCTION IN PERCENT | -20.0 TO +20.0 CAPACITOR C1 |
| DC VOLTAGE RATING PER FUNCTION IN VOLTS | 12.0 CAPACITOR C1 |
| RESISTANCE TOLERANCE PER FUNCTION IN PERCENT | -5.0 TO +5.0 ALL RESISTORS |
| ASSEMBLY FORM | MOLDED TOGETHER |
| TERMINAL TYPE AND QUANTITY | 8 WIRE LEAD |
| MOUNTING METHOD | TERMINAL |
| MOUNTING FACILITY QUANTITY | 8 |
| OVERALL LENGTH | 1.440 INCHES NOMINAL |
| OVERALL WIDTH | 0.172 INCHES NOMINAL |
