NSN 5915-00-327-9581

Part Details | BAND PASS FILTER

5915-00-327-9581 An item designed to pass frequencies within a specified range (band) and to suppress frequencies outside the range (band). Excludes a single inductance, or a single capacitance, or a single resistance. See COIL (as modified); REACTOR; CAPACITOR (as modified); and RESISTOR (as modified).

Alternate Parts: 9304341B, 930434-1B, 17717, VE17717, 5915-00-327-9581, 00-327-9581, 5915003279581, 003279581

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
59DEC 03, 197300-327-958100209 ( FILTER, BAND PASS )
REFERENCE DRAWINGS & PICTURES

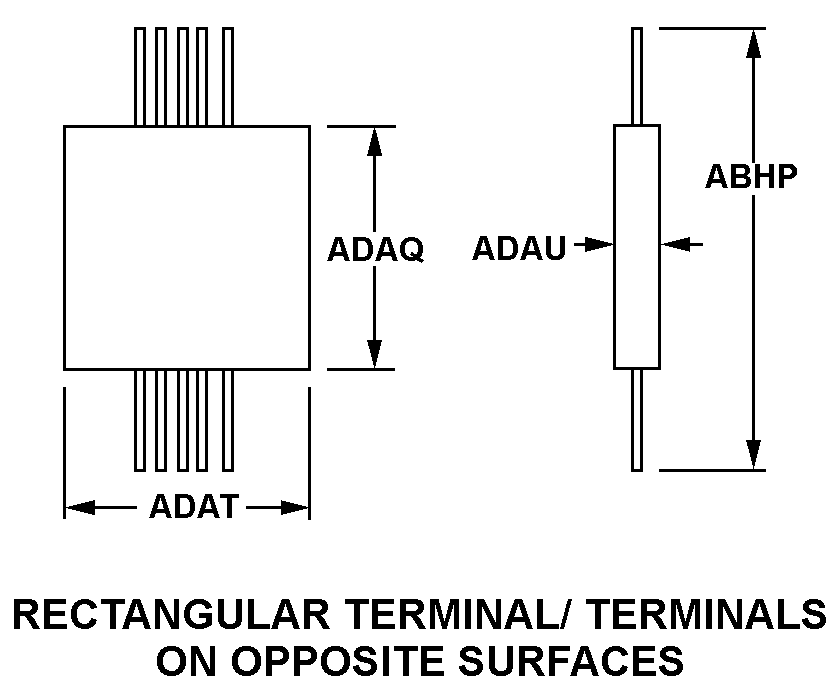

RECTANGULAR TERMINAL/TERMINALS ON OPPOSITE SURFACES

Cross Reference | NSN 5915-00-327-9581
Part Number Cage Code Manufacturer
930434-1B82577RAYTHEON COMPANYDBA RAYTHEON
1771703550VANGUARD ELECTRONICS COMPANY
VE1771703550VANGUARD ELECTRONICS COMPANY
Technical Data | NSN 5915-00-327-9581
Characteristic Specifications
REFERENCE FREQUENCY PER FUNCTIONZZ7.2 MEGAHERTZ
INSERTION LOSS AT REFERENCE FREQUENCY PER FUNCTION IN DECIBELS3.0 BLANK
FREQUENCY BAND WIDTH PER FUNCTIONZZ6.84 MEGAHERTZ AND ZZ7.56 MEGAHERTZ
SOURCE IMPEDANCE RATING PER FUNCTIONZZ50.0 OHMS
LOAD IMPEDANCE PER FUNCTIONZZ50.0 OHMS
INCLOSURE TYPE ENCASED
STYLE DESIGNATOR RECTANGULAR TERMINAL/TERMINALS ON OPPOSITE SURFACES
OVERALL LENGTH0.770 INCHES NOMINAL
BODY LENGTH0.380 INCHES MAXIMUM
BODY HEIGHT0.250 INCHES MAXIMUM
BODY WIDTH0.380 INCHES MAXIMUM
MOUNTING FACILITY TYPE AND QUANTITY3 TERMINAL
FEATURES PROVIDED TUNABLE
FREQUENCY TUNING METHOD VOLTAGE TUNABLE
TUNABLE FREQUENCY RANGE6.84 MEGAHERTZ MINIMUM AND 7.56 MEGAHERTZ MAXIMUM
SPECIFIED FREQUENCIES OF DISCRIMINATION PER FUNCTIONZZ6.48 MEGAHERTZ AND ZZ6.84 MEGAHERTZ AND ZZ7.56 MEGAHERTZ AND ZZ7.92 MEGAHERTZ
DISCRIMINATION AT SPECIFIED FREQUENCIES PER FUNCTION IN DECIBELSZZ3.0 MINIMUM AND ZZ30.0 MAXIMUM
PRINCIPAL CIRCUITRY TYPE PER FUNCTIONZZ INDUCTANCE-CAPACITANCE
OPERATING TEMP RANGE-55.0 TO +85.0 DEG CELSIUS
BODY MATERIAL PLASTIC
