Part Details | BLOWN FUSE INDICATOR
5920-00-223-1818 An item which is specifically designed to be attached to a fuse, fuse clip, or fuseholder, and to give visual indication when the fuse is blown. It does not include the fuse. See also LAMP, GLOW and ALARM, BLOWN FUSE.
Alternate Parts: 17F10FB, 17F10FB, 5920-00-223-1818, 00-223-1818, 5920002231818, 002231818
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-223-1818 | 02911 ( INDICATOR, BLOWN FUSE ) |
REFERENCE DRAWINGS & PICTURES

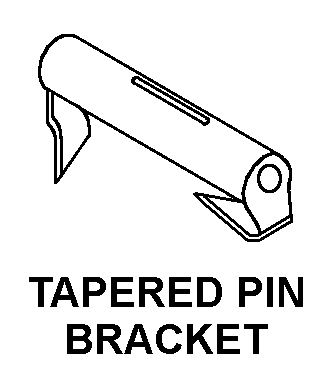

TAPERED PIN BRACKET
Cross Reference | NSN 5920-00-223-1818
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 17F10FB | 12497 | JOHN A. BECKER CO., THEDBA BECKER ELECTRIC SUPPLY |
| 17F10FB | 30003 | NAVAL AIR SYSTEMS COMMAND MANAGEDORIGINAL DESIGN ACTIVITY NOT |
Technical Data | NSN 5920-00-223-1818
| Characteristic | Specifications |
|---|---|
| AC VOLTAGE RATING | 115.0 VOLTS NOMINAL |
| MOUNTING STYLE | TAPERED PIN BRACKET |
| SPECIAL FEATURES | DIMENSIONS-0.750 IN. HIGH; 3.062 IN. LONG;0.438 IN. WIDE |
| NONDEFINITIVE SPEC/STD DATA | F TYPE AND B CLASS |
