NSN 5920-00-284-6794

Part Details | ENCLOSED LINK FUSE

5920-00-284-6794 A fuse in which the element is inclosed in a body of other than cylindrical shape. It may include visual indication that the fusible element is severed. For cylindrical items, see FUSE, CARTRIDGE. Excludes FUSE, OPEN LINK; and FUSE LINK, ELECTRICAL.

Alternate Parts: MILF5372, MIL-F-5372, MS2893730, MS28937-30, 5920-00-284-6794, 00-284-6794, 5920002846794, 002846794

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
59AUG 05, 198400-284-679400249 ( FUSE, ENCLOSED LINK )
REFERENCE DRAWINGS & PICTURES

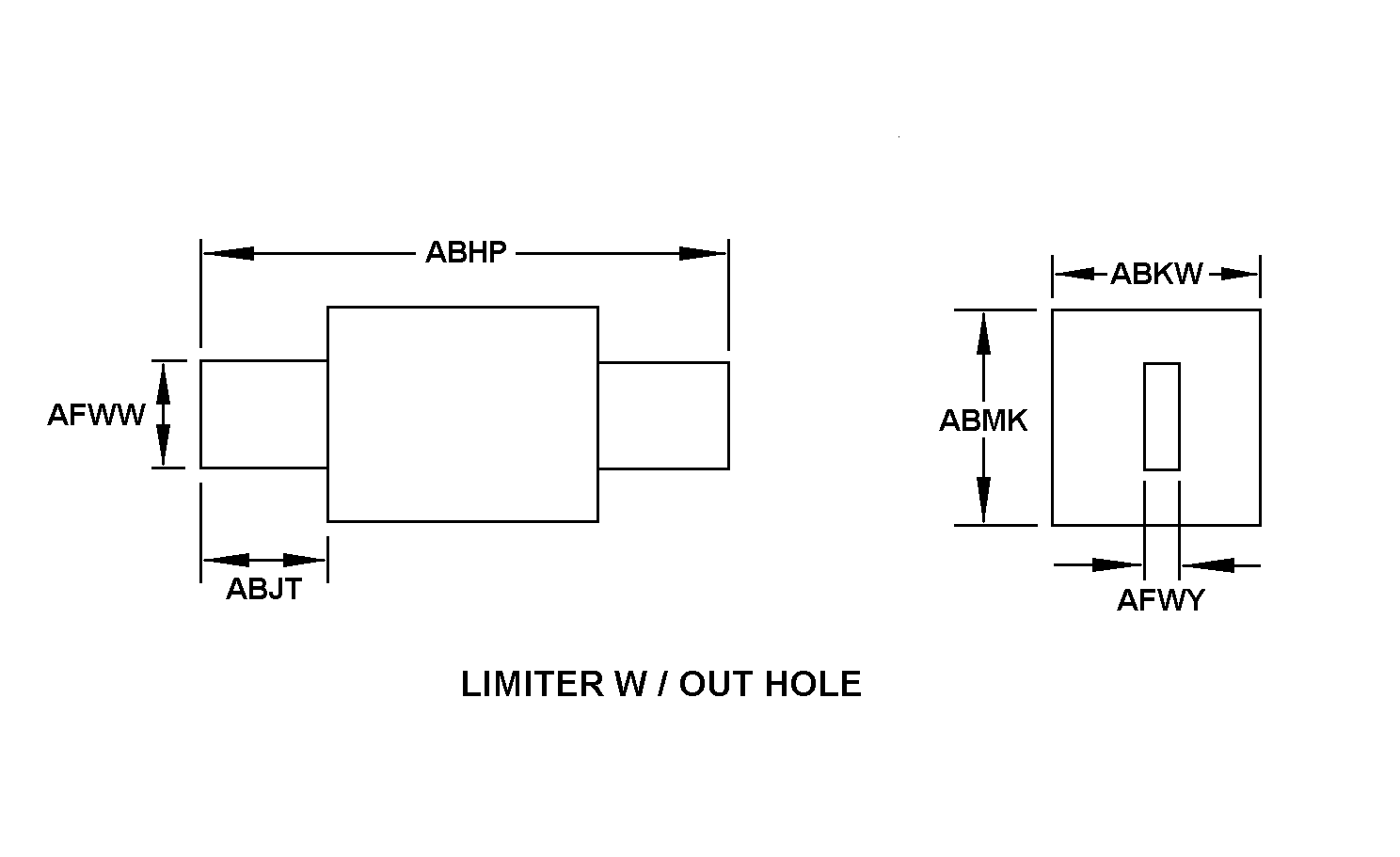

LIMITER W/OUT HOLE

Cross Reference | NSN 5920-00-284-6794
Part Number Cage Code Manufacturer
MIL-F-537281349MILITARY SPECIFICATIONSPROMULGATED BY MILITARY
MS28937-3096906MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS
Technical Data | NSN 5920-00-284-6794
Characteristic Specifications
BODY STYLE LIMITER W/OUT HOLE
OVERALL LENGTH2.093 INCHES MAXIMUM
TERMINAL LENGTH0.280 INCHES MINIMUM
OVERALL HEIGHT0.500 INCHES MAXIMUM
OVERALL WIDTH1.000 INCHES MAXIMUM
TERMINAL WIDTH0.156 INCHES MINIMUM
TERMINAL THICKNESS0.062 INCHES NOMINAL
CONTINUOUS CURRENT RATING IN AMPS30.000
MAXIMUM VOLTAGE RATING IN VOLTS200.0 AC AND 28.0 DC
CIRCUIT OVER-CURRENT INTERRUPTION TYPE NORMAL INSTANTANEOUS
INTERRUPTION INDICATOR METHOD VISIBLE ELEMENT
SHORT-CIRCUIT/INTERRUPT CURRENT RATING IN AMPS6000.0
TERMINAL SURFACE TREATMENT SILVER PLATED
TEST DATA DOCUMENT81349-MIL-F-5372 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL", "AVERAGE", "NOMINAL", ETC.).
SPECIFICATION/STANDARD DATA96906-MS28937 GOVERNMENT STANDARD
CASE MATERIAL PLASTIC, SILICONE, GLASS FILLED
TERMINAL MATERIAL COPPER
PRECIOUS MATERIAL SILVER
PRECIOUS MATERIAL AND LOCATIONTERMINAL SURFACES SILVER
