Part Details | EXTRACTOR POST FUSEHOLDER
5920-00-841-7283 A fuseholder in which the clips or contacts for electrical connection to the fuse are mounted in a tubular body or similar inclosure which surrounds the fuse. It generally contains a removable cap or knob. It includes in-the-line type and those designated as miniature type FUSEHOLDER (as modified).
Alternate Parts: 503, MILF1920731, MIL-F-19207/31, FHN47WB, 5920-00-841-7283, 00-841-7283, 5920008417283, 008417283
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | DEC 21, 1966 | 00-841-7283 | 28909 ( FUSEHOLDER, EXTRACTOR POST ) |
REFERENCE DRAWINGS & PICTURES
PANEL MOUNTED TYPE

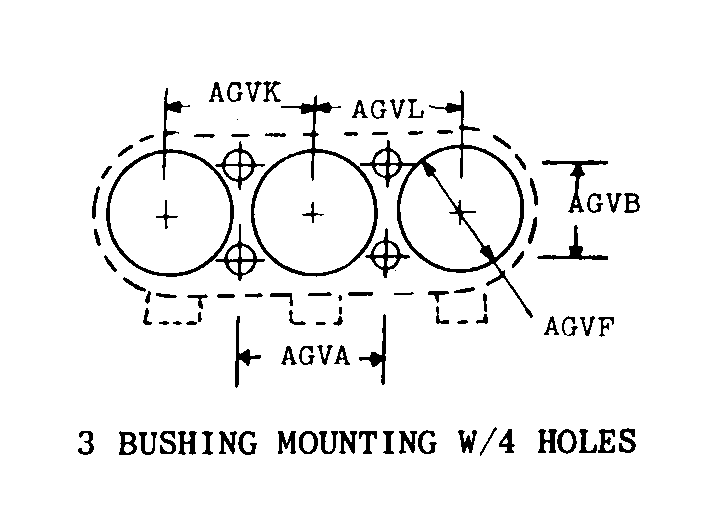

3 BUSHING MOUNTING W/4 HOLES
Cross Reference | NSN 5920-00-841-7283
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 503 | 84613 | FIC CORPORATION |
| MIL-F-19207/31 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| FHN47WB | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
Technical Data | NSN 5920-00-841-7283
| Characteristic | Specifications |
|---|---|
| FUSE ACCOMMODATION QUANTITY | 3 |
| CURRENT CARRYING RATING IN AMPS | 30.0 |
| VOLTAGE IN VOLTS | 500.0 |
| FUSE TERMINAL TYPE ACCOMMODATED | FERRULE |
| TERMINAL TYPE AND QUANTITY | 3 THREADED STUD AND 3 SCREW |
| SCREW THREAD DIAMETER | 0.190 INCHES NOMINAL |
| SCREW THREAD QUANTITY PER INCH | 32.0 |
| CONTACT MATERIAL | COPPER |
| BODY STYLE | PANEL MOUNTED TYPE |
| OVERALL LENGTH | 2.720 INCHES NOMINAL |
| OVERALL HEIGHT | 2.880 INCHES NOMINAL |
| OVERALL WIDTH | 1.190 INCHES NOMINAL |
| LENGTH FROM FRONT PROTRUSION TO MOUNTING SURFACE | 0.560 INCHES NOMINAL |
| CAP DIAMETER | 0.880 INCHES NOMINAL |
| MOUNTING HOLE STYLE | 3 BUSHING MOUNTING W/4 HOLES |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG LENGTH | 1.002 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG WIDTH | 0.502 INCHES NOMINAL |
| BUSHING HOLE DIAMETER | 0.771 INCHES MINIMUM AND 0.786 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN BUSHING HOLES | 0.994 INCHES MINIMUM AND 1.009 INCHES MAXIMUM |
| SECOND CENTER TO CENTER DISTANCE BETWEEN BUSHING HOLES | 0.994 INCHES MINIMUM AND 1.009 INCHES MAXIMUM |
| MOUNTING HOLE QUANTITY | A3$$A4 |
| MOUNTING HOLE DIAMETER | 0.152 INCHES NOMINAL AND 0.781 INCHES NOMINAL |
| ACCOMMODATED FUSE LENGTH | 1.500 INCHES NOMINAL |
| ACCOMMODATED FERRULE DIAMETER | 0.406 INCHES NOMINAL |
| ENVIRONMENTAL PROTECTION | WATERTIGHT AND BODY SEALED |
| TEST DATA DOCUMENT | 81349-MIL-F-19207 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL", "AVERAGE", "NOMINAL", ETC.). |
| SPECIFICATION/STANDARD DATA | 81349-MIL-F-19207 TO 31 GOVERNMENT SPECIFICATION |
| TERMINAL MATERIAL | BRASS |
| BODY MATERIAL | PLASTIC, PHENOLIC, MOULDED |
