NSN 5930-00-061-2101

Part Details | LEVER SWITCH

5930-00-061-2101 A switch which is externally actuated by a lever and whose contacts open and close at a speed proportional to the speed at which the lever is operated. Includes pile-up lever switches and wafer lever switches. Excludes SWITCH, TOGGLE; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; SWITCH, BOX; and SWITCH, MERCURY.

Alternate Parts: GS100110R7, GS100-110R7, GS100110R7, GS100-110R7, 5930-00-061-2101, 00-061-2101, 5930000612101, 000612101

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
59JUN 22, 196700-061-210100175 ( SWITCH, LEVER )
REFERENCE DRAWINGS & PICTURES

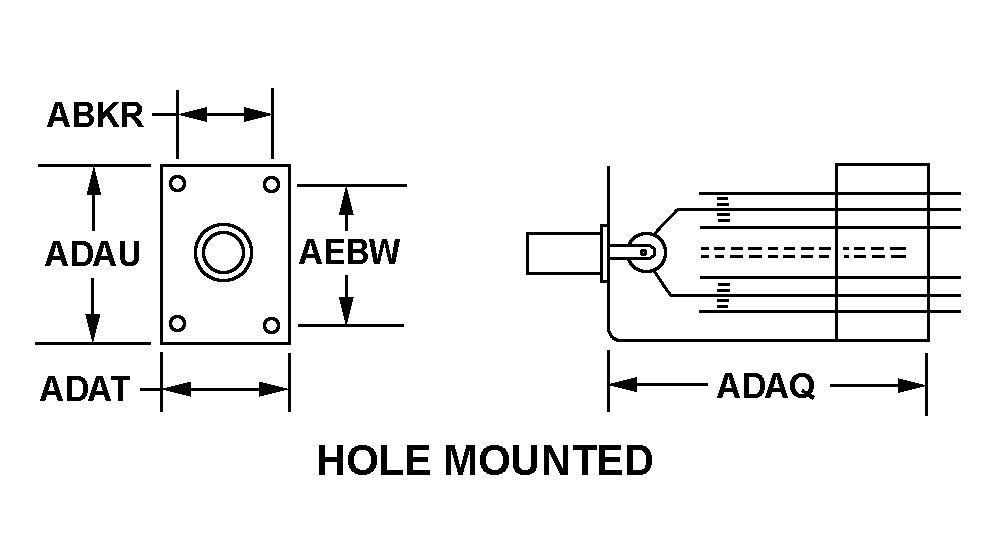

HOLE MOUNTED

ROUND

Cross Reference | NSN 5930-00-061-2101
Part Number Cage Code Manufacturer
GS100-110R724930HARRIS CORPORATIONDBA ELECTRONIC SYSTEMS, RADAR
GS100-110R714100STROMBERG-CARLSON CORPA PLESSEY TELECOMMUNICATIONS CO
Technical Data | NSN 5930-00-061-2101
Characteristic Specifications
MAXIMUM VOLTAGE RATING IN VOLTS115.0 AC
CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGEB10.000 AMPERES RESISTIVE
BODY STYLE HOLE MOUNTED
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH0.440 INCHES NOMINAL
BODY WIDTH0.620 INCHES NOMINAL
BODY HEIGHT1.310 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT1.000 INCHES NOMINAL
OVERALL LENGTH4.070 INCHES NOMINAL
OVERALL WIDTH0.620 INCHES NOMINAL
OVERALL HEIGHT1.310 INCHES NOMINAL
ACTUATOR STYLE ROUND
ACTUATOR HEIGHT1.190 INCHES NOMINAL
ACTUATOR POSITION-ACTION RELATIONSHIP UP POSITION MOMENTARY AND DOWN POSITION MAINTAINED AND CENTER POSITION MAINTAINED
ACTUATOR POSITION-LOCKING RELATIONSHIP UP POSITION NO LOCKING ACTION AND DOWN POSITION LOCKED IN AND CENTER POSITION LOCKED IN
TERMINAL TYPE AND QUANTITY8 TAB, SOLDER LUG
INCLOSURE TYPE UNINCLOSED
MOUNTING METHOD THREADED HOLE
THREAD SERIES DESIGNATOR UNC
NOMINAL THREAD SIZE0.112 INCHES
THREAD QUANTITY PER INCH40
PRECIOUS MATERIAL AND LOCATIONCONTACTS SILVER
