NSN 5930-00-079-6688

Part Details | SENSITIVE SWITCH

5930-00-079-6688 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.

Alternate Parts: P1508, E1300J, E13-00J, 5930-00-079-6688, 00-079-6688, 5930000796688, 000796688

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
59DEC 11, 196700-079-668800399 ( SWITCH, SENSITIVE )
REFERENCE DRAWINGS & PICTURES

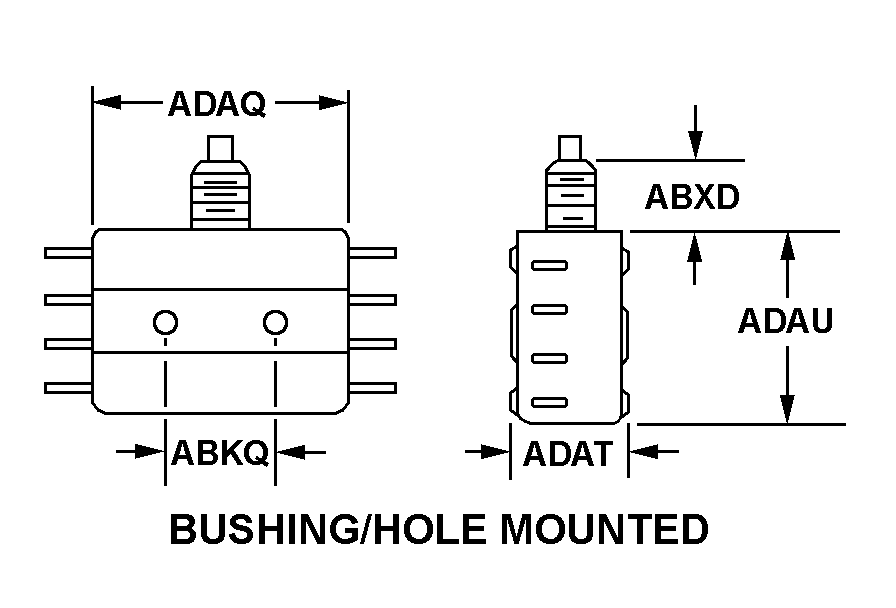

BUSHING/HOLE MOUNTED

ROUND

Cross Reference | NSN 5930-00-079-6688
Part Number Cage Code Manufacturer
P150801963CHERRY ELECTRICAL PRODUCTS CORP
E13-00J01963CHERRY ELECTRICAL PRODUCTS CORP
Technical Data | NSN 5930-00-079-6688
Characteristic Specifications
MAXIMUM VOLTAGE RATING IN VOLTS250.0 AC
CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGEB15.000 AMPERES RESISTIVE
BODY STYLE BUSHING/HOLE MOUNTED
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH0.993 INCHES MINIMUM AND 1.007 INCHES MAXIMUM
BUSHING LENGTH0.406 INCHES NOMINAL
BODY LENGTH1.796 INCHES MINIMUM AND 1.828 INCHES MAXIMUM
BODY WIDTH0.625 INCHES MINIMUM AND 0.657 INCHES MAXIMUM
BODY HEIGHT0.625 INCHES MINIMUM AND 0.657 INCHES MAXIMUM
OVERALL LENGTH2.624 INCHES NOMINAL
OVERALL WIDTH0.641 INCHES NOMINAL
OVERALL HEIGHT1.266 INCHES NOMINAL
ACTUATOR STYLE ROUND
ACTUATOR DIAMETER0.245 INCHES MINIMUM AND 0.255 INCHES MAXIMUM
ACTUATOR HEIGHT0.219 INCHES NOMINAL
ACTUATOR FREE POSITION HEIGHT0.745 INCHES MINIMUM AND 0.755 INCHES MAXIMUM
TERMINAL TYPE AND QUANTITY3 TAB, SOLDER LUG
SWITCH ACTUATING FORCE20.0 OUNCES MAXIMUM
SWITCH RELEASE FORCE3.0 OUNCES MINIMUM
ACTUATOR MOVEMENTC0.050 PRETRAVEL INCHES AND B0.100 OVERTRAVEL INCHES AND C0.015 DIFFERENTIAL INCHES
INCLOSURE TYPE FULLY INCLOSED
MOUNTING METHOD THREADED BUSHING
UNTHREADED MOUNTING HOLE DIAMETER0.140 INCHES MINIMUM AND 0.150 INCHES MAXIMUM
THREAD SERIES DESIGNATOR UNEF
NOMINAL THREAD SIZE0.375 INCHES
THREAD CLASS2A
