5930-00-105-7542 A switch actuated by a definite angular rotation of the switch shaft about its axis. For items having rated actuation travel and pressure characteristics, see SWITCH, SENSITIVE. Excludes RELAY, ROTARY; SWITCH, STEPPING; and SWITCH, TELEPHONE (as modified).
Alternate Parts: RS40424, RS40-4-24, 145C0084, 145C008-4, RS40424, RS40-4-24, 5930-00-105-7542, 00-105-7542, 5930001057542, 001057542
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 03, 1968 | 00-105-7542 | 02134 ( SWITCH, ROTARY ) |
REFERENCE DRAWINGS & PICTURES

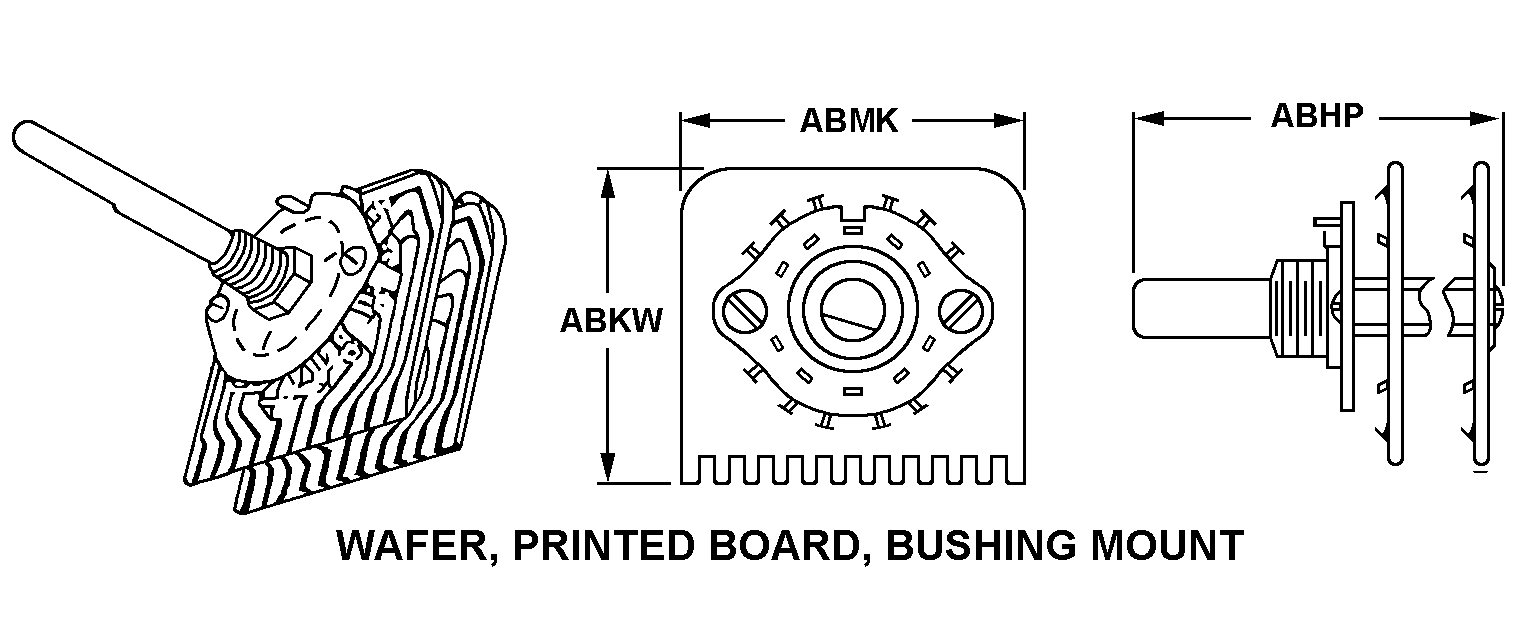

WAFER, PRINTED BOARD, BUSHING MOUNT
Cross Reference | NSN 5930-00-105-7542
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| RS40-4-24 | 08538 | CHICAGO DYNAMIC INDUSTRIES INC |
| 145C008-4 | 98853 | HAMILTON STANDARD ELECTRONICSSYSTEMS INC |
| RS40-4-24 | 82389 | SWITCHCRAFT INC. |
Technical Data | NSN 5930-00-105-7542
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | WAFER, PRINTED BOARD, BUSHING MOUNT |
| OVERALL HEIGHT | 4.000 INCHES NOMINAL |
| OVERALL WIDTH | 4.000 INCHES NOMINAL |
| INDIVIDUAL SECTION QUANTITY | 4 |
| SWITCH CONTACT BASIC DESIGN | NONPILE-UP SYMMETRICAL |
| TERMINAL TYPE | PIN |
| FEATURES PROVIDED | ACTUATOR KNOB |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | DUSTPROOF |
| KNOB MANUFACTURER CODE | 98853 |
