Part Details | TRIGGER SWITCH
5930-01-250-1366 A switch which is actuated by pulling a trigger. The switching device with trigger action may be a separate unit but is usually mounted or designed to be mounted in a pistol-grip handle. It may include provisions for locking the switch in the "ON" position. Excludes GRIP ASSEMBLY, CONTROLLER, AIRCRAFT.
Alternate Parts: 42725302, 427253-02, 110808, 6004R, 5930-01-250-1366, 01-250-1366, 5930012501366, 012501366
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | FEB 26, 1987 | 01-250-1366 | 00444 ( SWITCH, TRIGGER ) |
REFERENCE DRAWINGS & PICTURES

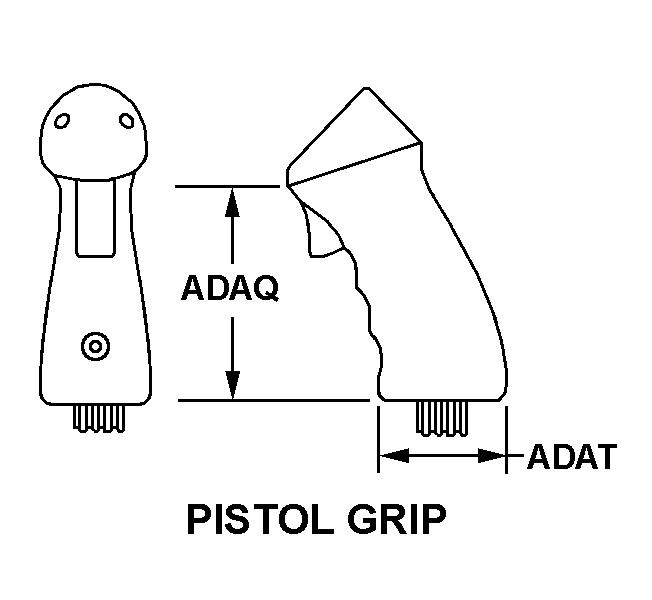

PISTOL GRIP
Cross Reference | NSN 5930-01-250-1366
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 427253-02 | 07690 | BAE SYSTEMS CONTROLS INC |
| 110808 | 35181 | CAE INC |
| 6004R | 81579 | MASON ELECTRIC COMPANYDIV ESTERLINE MASON |
Technical Data | NSN 5930-01-250-1366
| Characteristic | Specifications |
|---|---|
| MAXIMUM VOLTAGE RATING IN VOLTS | 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | C10.000 AMPERES RESISTIVE |
| BODY STYLE | PISTOL GRIP |
| BODY LENGTH | 1.130 INCHES MINIMUM AND 1.190 INCHES MAXIMUM |
| BODY WIDTH | 2.310 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 3 TAB, SOLDER LUG |
| INCLOSURE TYPE | FULLY INCLOSED |
| MOUNTING METHOD | THREADED HOLE |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.164 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 32 |
| FEATURES PROVIDED | MOUNTING HARDWARE |
| CASE MATERIAL | PLASTIC |
