Part Details | ELECTRICAL PLUG CONNECTOR
5935-00-053-8371 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: 9750G, 5935-00-053-8371, 00-053-8371, 5935000538371, 000538371
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1961 | 00-053-8371 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

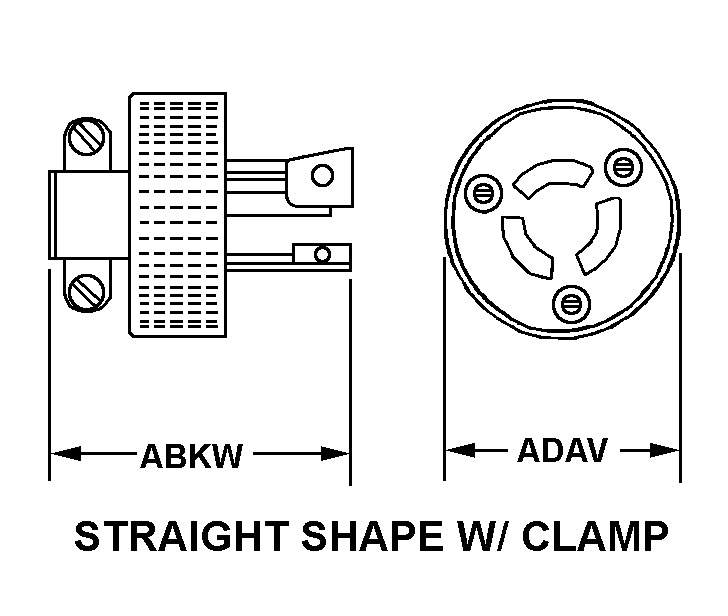

STRAIGHT SHAPE W/CLAMP
Cross Reference | NSN 5935-00-053-8371
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9750G | 74545 | HUBBELL INCWIRING DEVICE DIV |
Technical Data | NSN 5935-00-053-8371
| Characteristic | Specifications |
|---|---|
| BODY STYLE | STRAIGHT SHAPE W/CLAMP |
| OVERALL HEIGHT | 2.094 INCHES NOMINAL |
| OVERALL DIAMETER | 1.593 INCHES NOMINAL |
| CONNECTOR CABLE STRAIN RELIEF METHOD | CABLE CLAMP |
| CABLE ENTRANCE DIAMETER | 0.269 INCHES MINIMUM AND 0.625 INCHES MAXIMUM |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | RUBBER |
| POLARIZATION METHOD | CONTACT |
| MATING END QUANTITY | 1 |
