Part Details | ELECTRICAL PLUG CONNECTOR
5935-00-054-4424 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: 195662002, 195662-002, 293083, 2545730121, 25457-30121, 90310021, 903100-21, 2861191, 2-86119-1, 2860635, 2-86063-5, 2859303, 2-85930-3, 25355129, 2-535512-9, 2859303, 2-85930-3, 5935-00-054-4424, 00-054-4424, 5935000544424, 000544424
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAY 29, 1968 | 00-054-4424 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

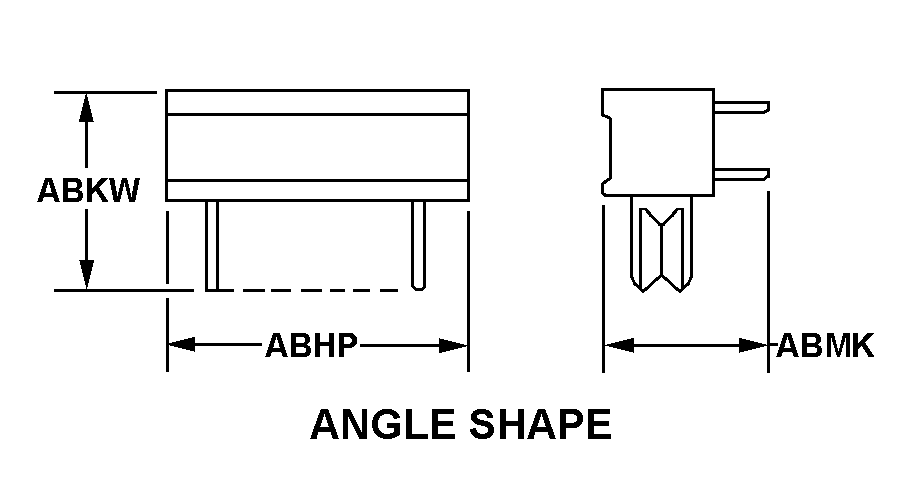

ANGLE SHAPE
Cross Reference | NSN 5935-00-054-4424
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 195662-002 | 81413 | BAE SYSTEMS INFORMATION ANDELECTRONIC SYSTEMS INTEGRATION I |
| 293083 | 88869 | EATON CORPELECTRONIC INSTRUMENTATION DIV |
| 25457-30121 | K0662 | LEONARDO MW LTD |
| 903100-21 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV NAVIGATION AND MARITIME SYSTEMS |
| 2-86119-1 | 00779 | TE CONNECTIVITY CORPORATIONDBA TE CONNECTIVITY |
| 2-86063-5 | 00779 | TE CONNECTIVITY CORPORATIONDBA TE CONNECTIVITY |
| 2-85930-3 | 00779 | TE CONNECTIVITY CORPORATIONDBA TE CONNECTIVITY |
| 2-535512-9 | 00779 | TE CONNECTIVITY CORPORATIONDBA TE CONNECTIVITY |
| 2-85930-3 | K1636 | TYCO ELECTRONICS UK LTD |
Technical Data | NSN 5935-00-054-4424
| Characteristic | Specifications |
|---|---|
| BODY STYLE | ANGLE SHAPE |
| OVERALL LENGTH | 2.945 INCHES NOMINAL |
| OVERALL HEIGHT | 0.356 INCHES NOMINAL |
| OVERALL WIDTH | 0.319 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | SPRING FRICTION |
| MATING END QUANTITY | 1 |
| PRECIOUS MATERIAL | GOLD |
| PRECIOUS MATERIAL AND WEIGHT | 0.058 GOLD GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
