Part Details | ELECTRICAL CONNECTOR END SEAL PLUG
5935-00-060-2239 A small, thin, cylindrically shaped item having a straight, smooth, solid, nonmetallic body. It may have a boss on one or both ends. It is specifically designed for sealing contact holes against moisture, dust, and the like, in electrical connectors. Excludes PLUG, END SEAL, ELECTRICAL CONDUIT; and PIN, STRAIGHT, HEADLESS.
Alternate Parts: MS271871, MS27187-1, 5935-00-060-2239, 00-060-2239, 5935000602239, 000602239
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUN 15, 1967 | 00-060-2239 | 27129 ( PLUG, END SEAL, ELECTRICAL CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

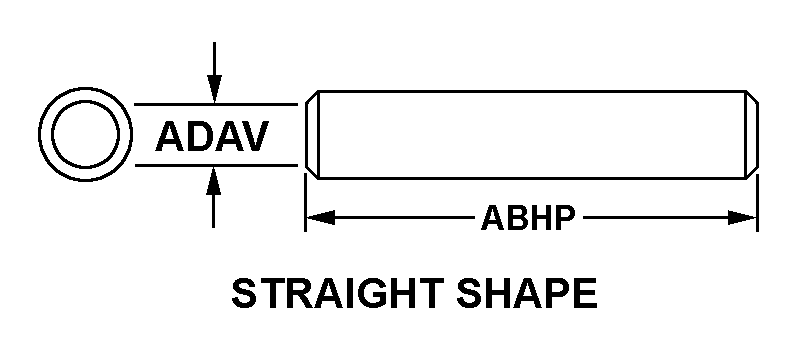

STRAIGHT SHAPE
Cross Reference | NSN 5935-00-060-2239
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS27187-1 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
Technical Data | NSN 5935-00-060-2239
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STRAIGHT SHAPE |
| OVERALL LENGTH | 0.535 INCHES MINIMUM AND 0.565 INCHES MAXIMUM |
| OVERALL DIAMETER | 0.100 INCHES MINIMUM AND 0.105 INCHES MAXIMUM |
| MATERIAL | PLASTIC |
| SIZE DESIGNATION | 16 |
| TEST DATA DOCUMENT | 96906-MS27187 STANDARD (INCLUDES INDUSTRY OR ASSOCIATION STANDARDS, INDIVIDUAL MANUFACTUREER STANDARDS, ETC.). |
| SPECIFICATION/STANDARD DATA | 96906-MS27187 GOVERNMENT STANDARD |
