Part Details | ELECTRICAL PLUG CONNECTOR
5935-00-064-5051 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: 9000S620273965REV1, 9000S6202-73965REV1, 5935-00-064-5051, 00-064-5051, 5935000645051, 000645051
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUN 29, 1967 | 00-064-5051 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

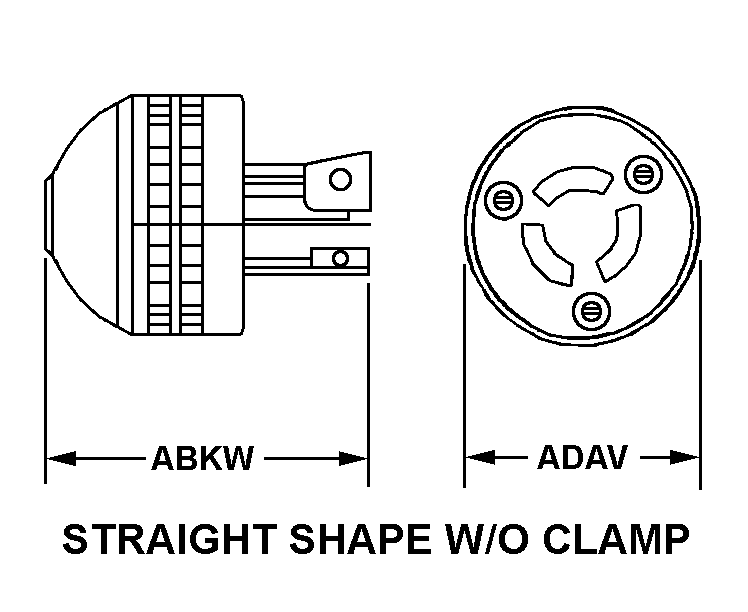

STRAIGHT SHAPE W/O CLAMP
Cross Reference | NSN 5935-00-064-5051
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9000S6202-73965REV1 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Technical Data | NSN 5935-00-064-5051
| Characteristic | Specifications |
|---|---|
| BODY STYLE | STRAIGHT SHAPE W/O CLAMP |
| OVERALL LENGTH | 7.062 INCHES NOMINAL |
| OVERALL HEIGHT | 2.750 INCHES NOMINAL |
| OVERALL DIAMETER | 2.625 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | INTERNALLY THREADED COUPLING NUT |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | UNS |
| NOMINAL THREAD SIZE | 3.750 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 7 |
| THREAD DIRECTION | RIGHT-HAND |
| NOMINAL THREAD LENGTH | 0.750 INCHES |
| CONNECTOR CABLE STRAIN RELIEF METHOD | COMPRESSION NUT |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | COPPER |
| SHELL SURFACE TREATMENT | CADMIUM |
| POLARIZATION METHOD | CONTACT |
| INSERT POSITION IN DEG | 180.0 |
| MATING END QUANTITY | 1 |
| ENVIRONMENTAL PROTECTION | WATERTIGHT |
