Part Details | ELECTRICAL CONNECTOR BACKSHELL
5935-00-064-5138 An item specifically designed to be placed around that portion of a CONNECTOR, RECEPTABLE, ELECTRICAL or CONNECTOR, PLUG, ELECTRICAL which contains the facilities for attaching wires or cables. It may be designed to provide the necessary accomodations between an electrical cable clamping device and an electrical connector shell, or it may include the clamping device. It may be used for shielding against electrical interference, mechanical injury, or physical damage due to environmental conditions.
Alternate Parts: CSP1144, CSP114-4, G3554, G355-4, 5935-00-064-5138, 00-064-5138, 5935000645138, 000645138
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-064-5138 | 67169 ( BACKSHELL, ELECTRICAL CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

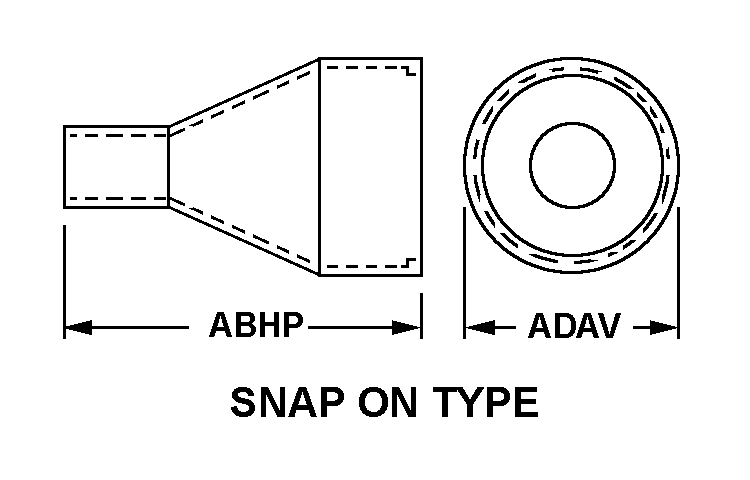

SNAP ON TYPE
Cross Reference | NSN 5935-00-064-5138
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CSP114-4 | 71867 | BOMBARDIER AEROSPACE AEROSPACE DIV |
| G355-4 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV MISSION SYSTEMS |
Technical Data | NSN 5935-00-064-5138
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SNAP ON TYPE |
| OVERALL LENGTH | 0.843 INCHES NOMINAL |
| OVERALL DIAMETER | 1.531 INCHES NOMINAL |
| MATERIAL | RUBBER SYNTHETIC |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 SNAP-IN |
| CABLE OPENING QUANTITY | 1 |
| CABLE OPENING DIAMETER | 0.250 INCHES NOMINAL |
| SIZE DESIGNATION | 24 AND 28 |
