Part Details | CONNECTOR ADAPTER
5935-00-067-6775 An adapter with electrical contacts which provides facilities for joining two or more electrical connectors, whose design or function will not normally warrant their junction. It is not designed for permanent attachment to a cable, cord, coaxial line, or wire. The physical shape of an electrical connector should not be the determining factor of its name. Tee, angle, straight, and Y-shaped adapters are all ADAPTER, CONNECTOR. Excludes ADAPTER, CONNECTOR TO LAMPBASE; ADAPTER, LAMPHOLDER TO CONNECTOR; ADAPTER (1), CABLE CLAMP TO CONNECTOR; and ADAPTER, LAMPHOLDER. For items designed as a mechanical connection between an electrical conduit and an electrical connector, see ADAPTER (1), ELECTRICAL CONDUIT.
Alternate Parts: 5273L, 5273L, 5017, 65A, 5935-00-067-6775, 00-067-6775, 5935000676775, 000676775
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 05, 1967 | 00-067-6775 | 15091 ( ADAPTER, CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

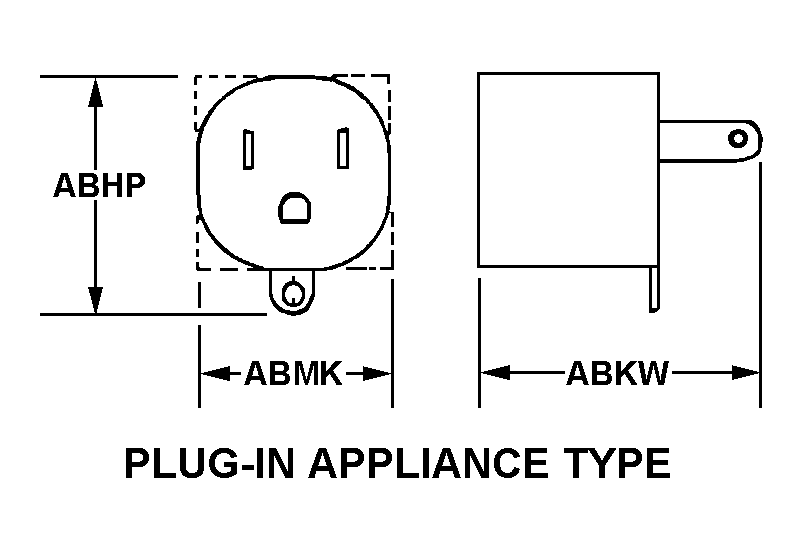

PLUG-IN APPLIANCE TYPE
Cross Reference | NSN 5935-00-067-6775
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5273L | 74545 | HUBBELL INCWIRING DEVICE DIV |
| 5273L | 77881 | HUBBELL-RACO INC |
| 5017 | 75582 | LEVITON MANUFACTURING CO., INC.DBA LEVITON |
| 65A | 82379 | PAULDING JOHN I INCSUB OF REVERE COPPER AND BRASS INC |
Technical Data | NSN 5935-00-067-6775
| Characteristic | Specifications |
|---|---|
| BODY STYLE | PLUG-IN APPLIANCE TYPE |
| OVERALL LENGTH | 1.438 INCHES NOMINAL |
| OVERALL HEIGHT | 1.688 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | SPRING FRICTION |
| POLARIZATION METHOD | CONTACT AND MATING END |
| MATING END QUANTITY | 2 |
