Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-067-7311 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 1332311034, 133-23-11-034, 3MSS2, 136022000, 136-0220-00, 5935-00-067-7311, 00-067-7311, 5935000677311, 000677311
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUN 29, 1967 | 00-067-7311 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES

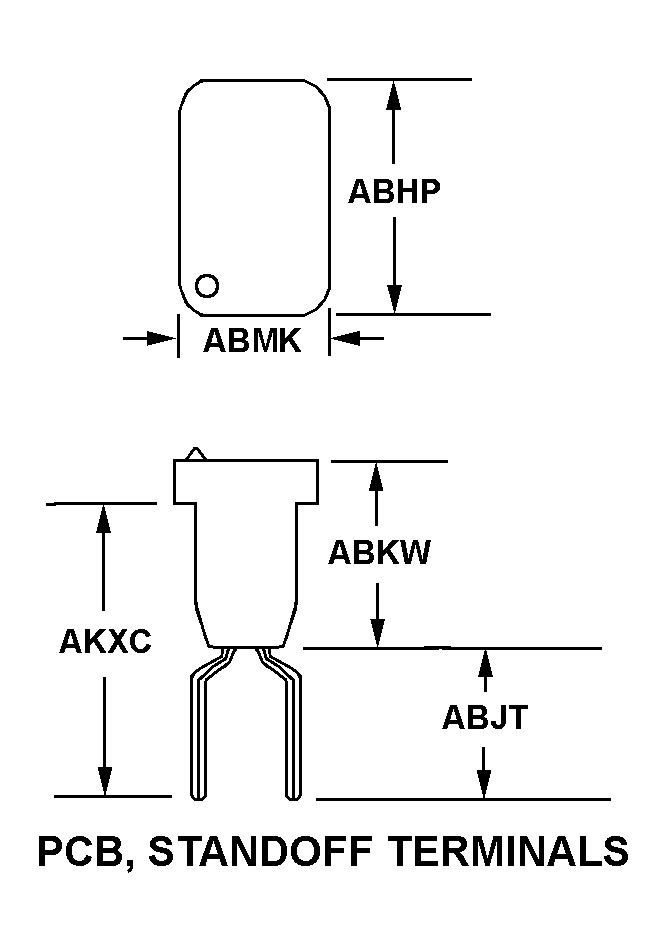

PCB, STANDOFF TERMINALS

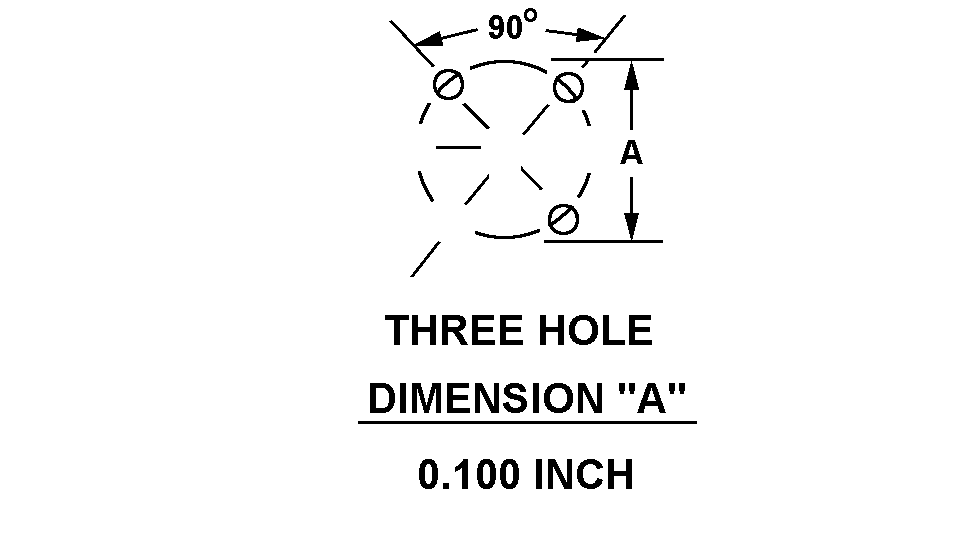

THREE HOLE DIMENSION "A" 0.100 INCH
CIRCULAR IRREGULAR 0.100 INCH
Cross Reference | NSN 5935-00-067-7311
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 133-23-11-034 | 71785 | CINCH CONNECTORS, INC. |
| 3MSS2 | 71785 | CINCH CONNECTORS, INC. |
| 136-0220-00 | 80009 | TEKTRONIX, INC.DBA TEKTRONIX |
Technical Data | NSN 5935-00-067-7311
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | CIRCULAR IRREGULAR 0.100 INCH |
| ACCOMMODATED CONTACT QUANTITY | 3 |
| CONTACT MATERIAL | PHOSPHOR BRONZE |
| CONTACT SURFACE TREATMENT | CADMIUM |
| BODY STYLE | PCB, STANDOFF TERMINALS |
| OVERALL LENGTH | 0.239 INCHES MINIMUM AND 0.249 INCHES MAXIMUM |
| TERMINAL LENGTH | 0.093 INCHES MINIMUM AND 0.157 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.358 INCHES MINIMUM AND 0.438 INCHES MAXIMUM |
| OVERALL WIDTH | 0.239 INCHES MINIMUM AND 0.249 INCHES MAXIMUM |
| PROJECTION LENGTH BELOW MOUNTING SURFACE | 0.333 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 3 PRINTED CIRCUIT |
| MOUNTING TYPE FOR WHICH DESIGNED | PRINTED CIRCUIT |
| MOUNTING METHOD | TERMINAL |
| PRINTED CIRCUIT BOARD HOLE ARRANGEMENT STYLE | THREE HOLE DIMENSION "A" 0.100 INCH |
| POLARIZATION TYPE | CONTACT POSITION |
