Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-068-4665 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: TS279, 6210418TS279, 62104-18TS279, 6210418, 62104-18, 5935-00-068-4665, 00-068-4665, 5935000684665, 000684665
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-068-4665 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES

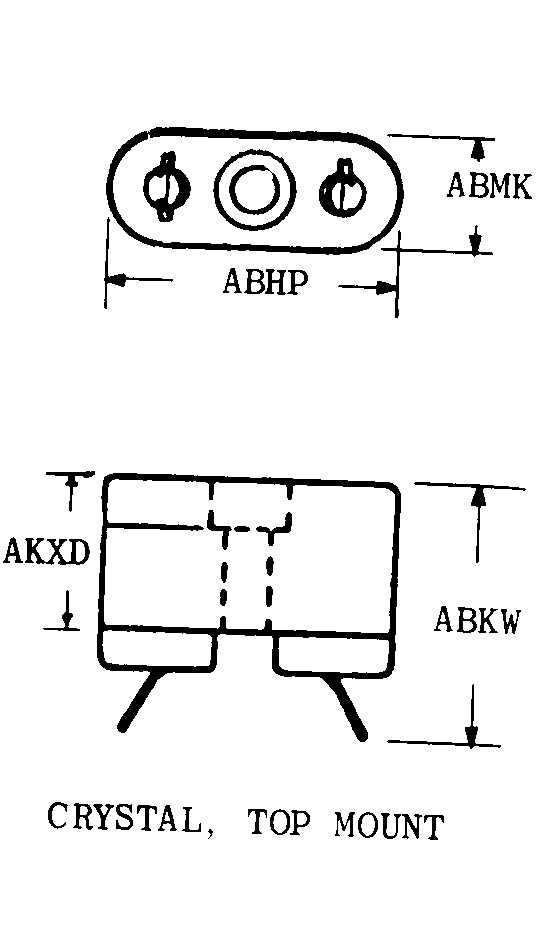

CRYSTAL, TOP MOUNT
SINGLE MOUNTING HOLE/SLOT
IN LINE
Cross Reference | NSN 5935-00-068-4665
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| TS279 | 97913 | IEH CORPORATION |
| 62104-18TS279 | 97913 | IEH CORPORATION |
| 62104-18 | 13297 | MAGNASYNC/MOVIOLA CORPORATION |
Technical Data | NSN 5935-00-068-4665
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | IN LINE |
| ACCOMMODATED CONTACT QUANTITY | 2 |
| CONTACT MATERIAL | COPPER ALLOY |
| CONTACT SURFACE TREATMENT | CADMIUM |
| BODY STYLE | CRYSTAL, TOP MOUNT |
| OVERALL LENGTH | 0.937 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.500 INCHES MAXIMUM |
| OVERALL WIDTH | 0.375 INCHES MAXIMUM |
| PROJECTION LENGTH ABOVE MOUNTING SURFACE | 0.125 INCHES MAXIMUM |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 2 TAB, SOLDER LUG |
| GROUND TERMINAL TYPE AND QUANTITY | 2 TAB, SOLDER LUG |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | BODY THROUGH HOLE |
| MOUNTING HOLE STYLE | SINGLE MOUNTING HOLE/SLOT |
| MOUNTING HOLE DIAMETER | 0.125 INCHES MAXIMUM |
