Part Details | ELECTRICAL PLUG CONNECTOR
5935-00-068-8940 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: S31810441RN, S318-104-4-1RN, 5935-00-068-8940, 00-068-8940, 5935000688940, 000688940
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 07, 1967 | 00-068-8940 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

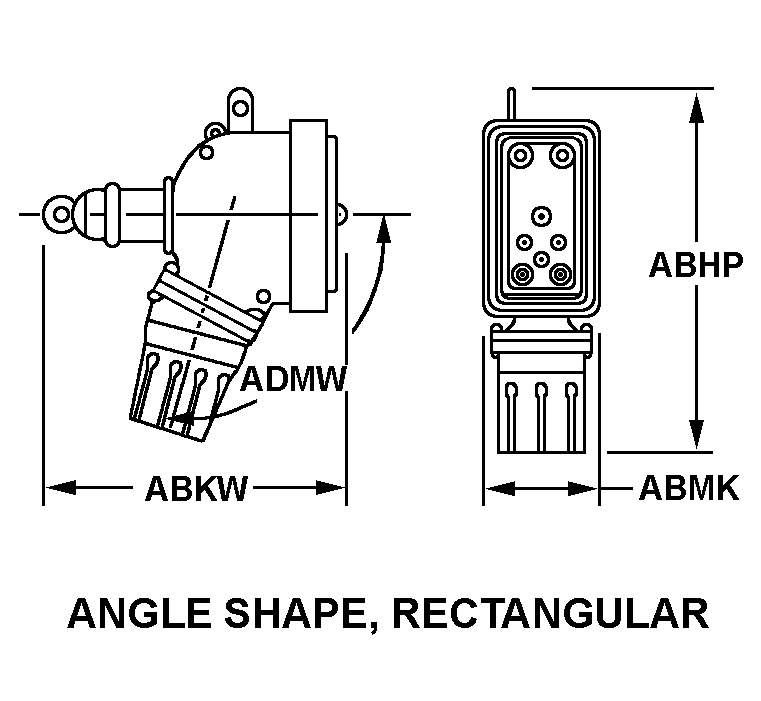

ANGLE SHAPE, RECTANGULAR
Cross Reference | NSN 5935-00-068-8940
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| S318-104-4-1RN | 07418 | JOSLYN SUNBANK COMPANY, LLC |
Technical Data | NSN 5935-00-068-8940
| Characteristic | Specifications |
|---|---|
| BODY STYLE | ANGLE SHAPE, RECTANGULAR |
| OVERALL LENGTH | 4.281 INCHES NOMINAL |
| OVERALL HEIGHT | 4.031 INCHES NOMINAL |
| OVERALL WIDTH | 1.812 INCHES NOMINAL |
| CABLE ENTRANCE DIAMETER | 0.188 INCHES MINIMUM AND 0.312 INCHES MAXIMUM |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY 380.0 |
| SHELL MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-591 FED SPEC SINGLE MATERIAL RESPONSE |
| SHELL SURFACE TREATMENT | CADMIUM |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE |
| MATING END QUANTITY | 1 |
