Part Details | ELECTRICAL CONNECTOR JACKSCREW
5935-00-069-7713 A locking device specifically designed to secure engaged electrical connectors. Its mating end is either internally or externally threaded. It is designed to be installed in an ADAPTER (2), CONNECTOR; CONNECTOR BODY, PLUG, ELECTRICAL; CONNECTOR BODY, RECEPTACLE, ELECTRICAL; CONNECTOR, PLUG, ELECTRICAL; CONNECTOR, RECEPTACLE, ELECTRICAL; COVER, ELECTRICAL CONNECTOR; DUMMY CONNECTOR, PLUG; DUMMY CONNECTOR, RECEPTACLE; INSERT, ELECTRICAL CONNECTOR; SHELL, ELECTRICAL CONNECTOR; or a SHIELD, ELECTRICAL CONNECTOR. It may be used for polarization. It may be equipped with a knob, slotted head, knurled head, or the like.
Alternate Parts: DPD2CMR, 575R236H05, 5935-00-069-7713, 00-069-7713, 5935000697713, 000697713
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-069-7713 | 36340 ( JACKSCREW, ELECTRICAL CONNECTOR ) |

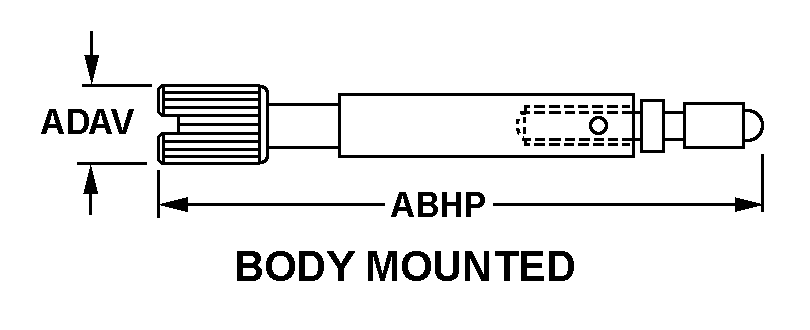

REFERENCE DRAWINGS & PICTURES
BODY MOUNTED
Cross Reference | NSN 5935-00-069-7713
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| DPD2CMR | 71468 | ITT CORPORATIONDBA I T T CANNON |
| 575R236H05 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV NORTHROP GRUMMAN SYSTEMS |
Technical Data | NSN 5935-00-069-7713
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | BODY MOUNTED |
| OVERALL LENGTH | 5.500 INCHES NOMINAL |
| OVERALL DIAMETER | 1.500 INCHES NOMINAL |
| MATERIAL | STEEL AND ALUMINUM ALLOY |
| SURFACE TREATMENT | CADMIUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED COUPLING |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.312 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 24 |
| THREAD DIRECTION | RIGHT-HAND |
