Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-070-5770 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: HRCC905M, 16823741, 1682374-1, 5935-00-070-5770, 00-070-5770, 5935000705770, 000705770
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1961 | 00-070-5770 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
TOP MOUNT W/STUDS

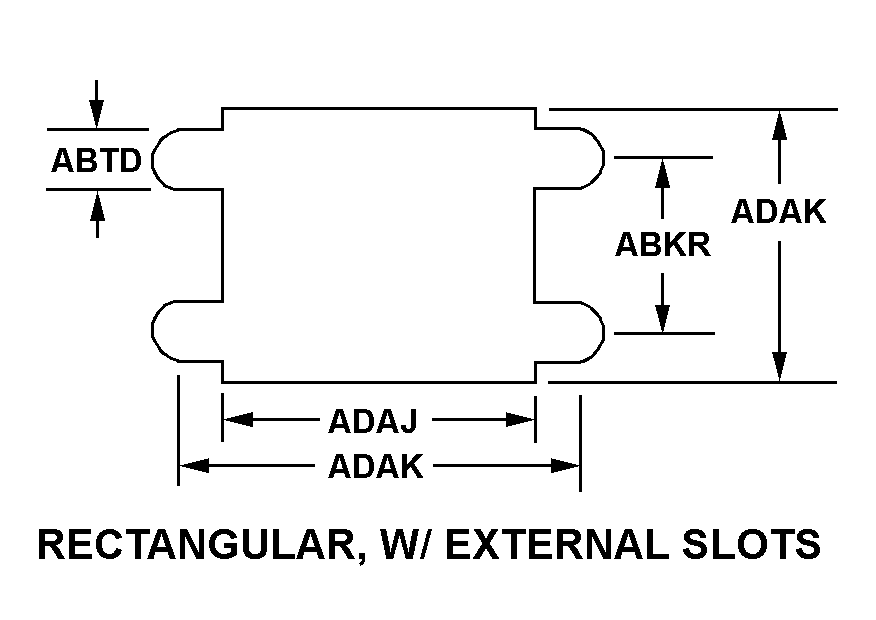

RECTANGULAR, W/EXTERNAL SLOTS

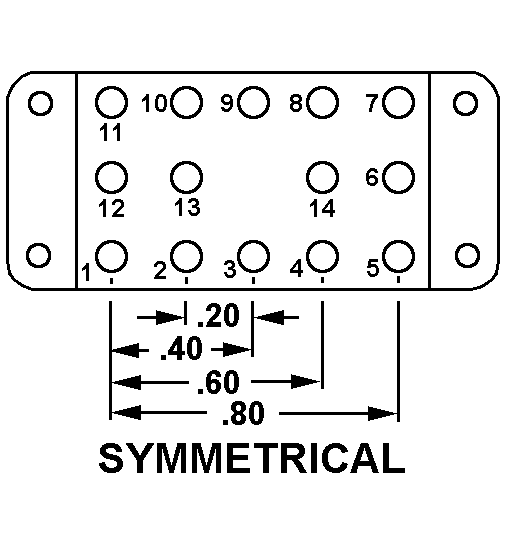

SYMMETRICAL
Cross Reference | NSN 5935-00-070-5770
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HRCC905M | 91663 | ARMEL ELECTRONICS INC |
| 1682374-1 | 56232 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
Technical Data | NSN 5935-00-070-5770
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | SYMMETRICAL |
| ACCOMMODATED CONTACT QUANTITY | 14 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 3.0 |
| CONTACT MATERIAL | ANY ACCEPTABLE |
| CONTACT SURFACE TREATMENT | ANY ACCEPTABLE |
| BODY STYLE | TOP MOUNT W/STUDS |
| OVERALL LENGTH | 1.438 INCHES NOMINAL |
| OVERALL WIDTH | 0.609 INCHES NOMINAL |
| PROJECTION LENGTH BELOW MOUNTING SURFACE | 0.250 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 14 TAB, SOLDER LUG |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | THREADED STUD |
| MOUNTING HOLE STYLE | RECTANGULAR, W/EXTERNAL SLOTS |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 0.400 INCHES NOMINAL |
| MOUNTING SLOT WIDTH | 0.125 INCHES NOMINAL |
| BODY MOUNTING HOLE ACCOMMODATION LENGTH | 1.062 INCHES NOMINAL |
| BODY MOUNTING HOLE ACCOMMODATION WIDTH | 0.688 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.344 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.112 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 40 |
| THREAD DIRECTION | RIGHT-HAND |
| POLARIZATION TYPE | COLORED DOT |
| FABRICATION METHOD | MOLDED |
| TEMP RATING | -65.0 DEG CELSIUS AND 125.0 DEG CELSIUS |
