Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-070-6304 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 212FTS1SLC, 7237636P3, 7237636P3, 5935-00-070-6304, 00-070-6304, 5935000706304, 000706304
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 13, 1967 | 00-070-6304 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
TOP MOUNT W/METAL SADDLE
ROUND, W/TWO MOUNTING HOLES

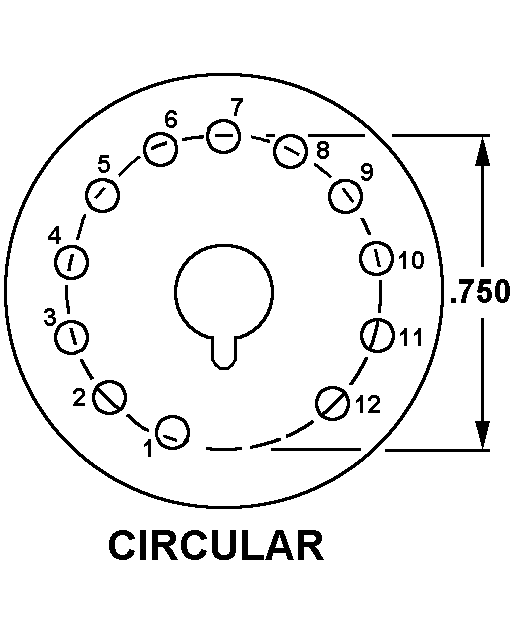

CIRCULAR
Cross Reference | NSN 5935-00-070-6304
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 212FTS1SLC | 01009 | ALDEN PRODUCTS COMPANY INC |
| 7237636P3 | 99971 | LOCKHEED MARTIN CORPNAVAL ELECTRONICS & SURVEILLANCE |
| 7237636P3 | 03538 | LOCKHEED MARTIN CORPORATIONDIV RMS |
Technical Data | NSN 5935-00-070-6304
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | CIRCULAR |
| ACCOMMODATED CONTACT QUANTITY | 12 |
| CONTACT MATERIAL | BRASS |
| CONTACT SURFACE TREATMENT | G0000 ANY ACCEPTABLE |
| BODY STYLE | TOP MOUNT W/METAL SADDLE |
| OVERALL LENGTH | 3.000 INCHES NOMINAL |
| OVERALL HEIGHT | 1.781 INCHES NOMINAL |
| OVERALL WIDTH | 1.969 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC AND Y0000 ANY ACCEPTABLE |
| TERMINAL TYPE AND QUANTITY | 12 WIRE LEAD |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING HOLE STYLE | ROUND, W/TWO MOUNTING HOLES |
| MOUNTING HOLE DIAMETER | 0.188 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 2.500 INCHES NOMINAL |
| POLARIZATION TYPE | CONTACT POSITION |
| SPECIAL FEATURES | 90 DEGREE WIRE LEAD 18.000 IN. LG |
| PRECIOUS MATERIAL | SILVER |
| PRECIOUS MATERIAL AND WEIGHT | 0.012 SILVER GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES SILVER |
