Part Details | ELECTRICAL CONNECTOR POTTING MOLD
5935-00-070-9479 An item, solid or split, designed to be used as a hollow form into which potting compound is injected and allowed to cure or set to seal the back of an electrical connector. The potting eliminates the need for a back shell of the connector. The form may or may not be removable after potting. See also SHIELD, ELECTRICAL CONNECTOR.
Alternate Parts: 8151197171ASSY2, 815-1197171ASSY2, 8151197171ASSY2, 815-1197171ASSY2, 404322, 40432-2, 8151197171ASSY2, 815-1197171ASSY2, 5935-00-070-9479, 00-070-9479, 5935000709479, 000709479
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-070-9479 | 22036 ( MOLD, POTTING, ELECTRICAL CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

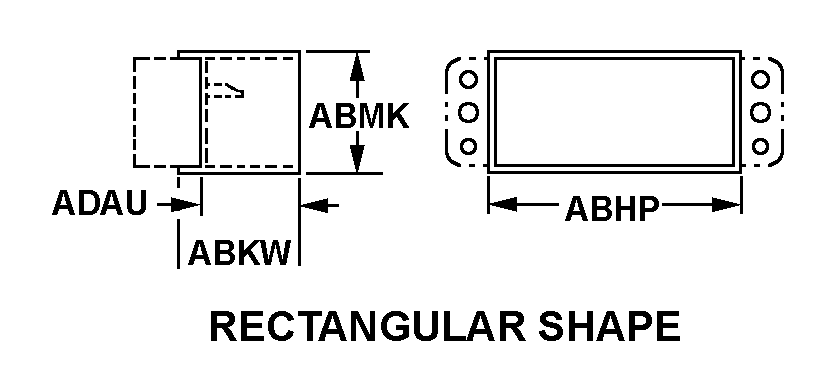

RECTANGULAR SHAPE
Cross Reference | NSN 5935-00-070-9479
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 815-1197171ASSY2 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 815-1197171ASSY2 | 08666 | O K INTL INC |
| 40432-2 | 52115 | TE CONNECTIVITY SEACON PHOENIX INC.DIV TE CONNECTIVITY SEACON PHOENIX |
| 815-1197171ASSY2 | 52115 | TE CONNECTIVITY SEACON PHOENIX INC.DIV TE CONNECTIVITY SEACON PHOENIX |
Technical Data | NSN 5935-00-070-9479
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | RECTANGULAR SHAPE |
| OVERALL HEIGHT | 3.000 INCHES NOMINAL |
| OVERALL WIDTH | 3.500 INCHES NOMINAL |
| BODY HEIGHT | 3.000 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY |
| CABLE OPENING QUANTITY | 1 |
| CABLE OPENING DIAMETER | 0.513 INCHES MINIMUM AND 0.517 INCHES MAXIMUM |
