Part Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-00-071-3617 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: 2VH181AN867, 2VH18-1AN8-67, L520010107, 695226PC7, 5935-00-071-3617, 00-071-3617, 5935000713617, 000713617
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1961 | 00-071-3617 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

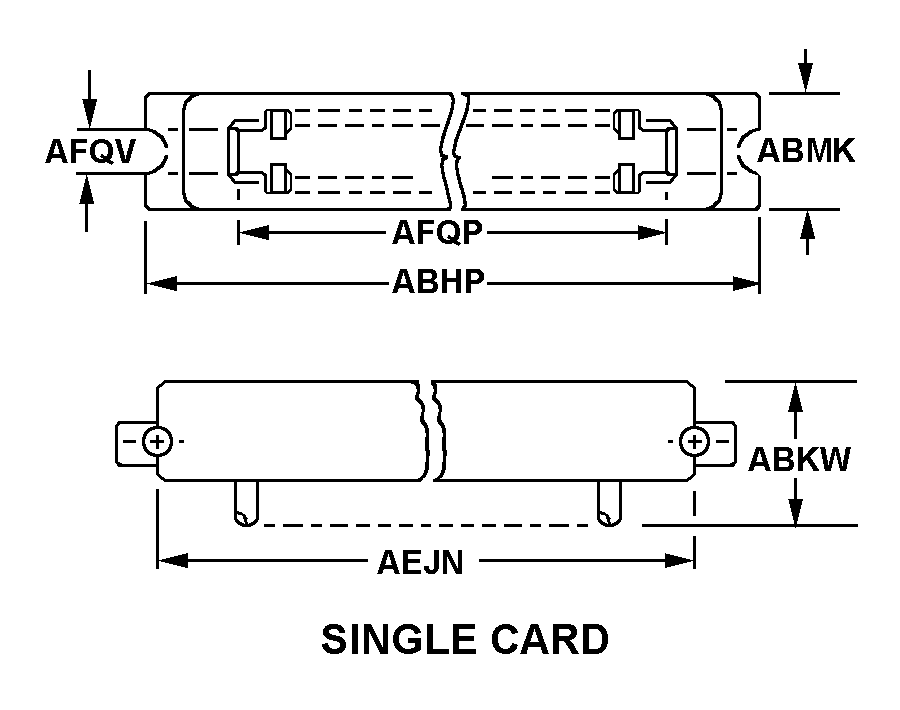

SINGLE CARD
Cross Reference | NSN 5935-00-071-3617
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2VH18-1AN8-67 | 05574 | COOPER INTERCONNECT, INC. |
| L520010107 | 36090 | LOCKHEED MARTIN LIBRASCOPECORP |
| 695226PC7 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
Technical Data | NSN 5935-00-071-3617
| Characteristic | Specifications |
|---|---|
| BODY STYLE | SINGLE CARD |
| OVERALL LENGTH | 3.724 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.681 INCHES NOMINAL |
| OVERALL WIDTH | 0.333 INCHES MAXIMUM |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 3.406 INCHES NOMINAL |
| BOARD ACCOMMODATED WIDTH | 0.054 INCHES MINIMUM AND 0.071 INCHES MAXIMUM |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.116 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | FRICTION |
| POLARIZATION METHOD | CONTACT TO CONTACT POLARIZING KEYS |
| MATING END QUANTITY | 1 |
| PRECIOUS MATERIAL | GOLD |
| PRECIOUS MATERIAL AND WEIGHT | 0.018 GOLD GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
