Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-071-9914 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 451116141, 451116-141, RSE116141, 20276201, 202762-01, 451116141, 451116-141, 56006502303, 56-0065-023-03, S010498309, S0-1049-8309, SO10498309, SO-1049-8309, C206355, C2063-55, B75851A, B75851, 5750255PT70, 5493908, 401635723012, 401-6357230-12, GS806CW2, W 4793 911 09, 5332121, 533212-1, W 4793 911 09, 3501771, 3501771, S010498309, S0-1049-8309, 4385750255PC70, 438-5750255PC70, 10558217, 5935-00-071-9914, 00-071-9914, 5935000719914, 000719914
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 20, 1967 | 00-071-9914 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
TOP MOUNT W/STUDS
RECTANGULAR, W/TWO MOUNTING HOLES/SLOTS

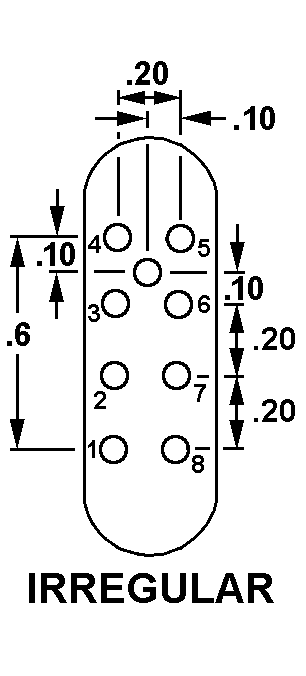

IRREGULAR
Cross Reference | NSN 5935-00-071-9914
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 451116-141 | 58982 | AMPHENOL PCD, INC. |
| RSE116141 | 58982 | AMPHENOL PCD, INC. |
| 202762-01 | 54089 | DRS C3 & AVIATION COMPANYDBA DRS DATA & IMAGING SYSTEMS |
| 451116-141 | 03743 | EGS ELECTRICAL GROUPAPPLETON DIV |
| 56-0065-023-03 | D1901 | HENSOLDT SENSORS GMBHDIV SEPS |
| S0-1049-8309 | 58657 | LEACH INTERNATIONAL CORPORATIONDBA ESTERLINE POWER SYSTEMS |
| SO-1049-8309 | D0080 | LEACH INTERNATIONAL GERMANY GMBH |
| C2063-55 | 81755 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN AERONAUTICS |
| B75851A | K0967 | MBDA UK LIMITEDDBA MBDA UK LTD |
| B75851 | K0967 | MBDA UK LIMITEDDBA MBDA UK LTD |
| 5750255PT70 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 5493908 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 401-6357230-12 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| GS806CW2 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV MISSION SYSTEMS |
| W 4793 911 09 | S3118 | OERLIKON-BUEHRLE AGWERKZEUGMASCHINENFABRIK |
| 533212-1 | 96214 | RAYTHEON COMPANYDBA RAYTHEON |
| W 4793 911 09 | S3092 | RHEINMETALL AIR DEFENCE AG |
| 3501771 | K0680 | ROLLS-ROYCE AIRLINES |
| 3501771 | K0378 | ROLLS-ROYCE MILITARY AERO ENGINESLTD |
| S0-1049-8309 | 35334 | SUPEREX CANADA LTD |
| 438-5750255PC70 | 50079 | TEXTRON INC.DBA TEXTRON SYSTEMS MARINE & LAND |
| 10558217 | 19200 | US ARMY ARDEC RDECOM |
Technical Data | NSN 5935-00-071-9914
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | IRREGULAR |
| ACCOMMODATED CONTACT QUANTITY | 9 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 10.0 |
| CONTACT MATERIAL | COPPER ALLOY |
| CONTACT SURFACE TREATMENT | U0000 ANY ACCEPTABLE |
| BODY STYLE | TOP MOUNT W/STUDS |
| OVERALL LENGTH | 1.161 INCHES MINIMUM AND 1.181 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.930 INCHES MINIMUM AND 0.970 INCHES MAXIMUM |
| OVERALL WIDTH | 0.500 INCHES MINIMUM AND 0.540 INCHES MAXIMUM |
| PROJECTION LENGTH BELOW MOUNTING SURFACE | 0.429 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 8 TAB, SOLDER LUG |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | THREADED STUD |
| MOUNTING HOLE STYLE | RECTANGULAR, W/TWO MOUNTING HOLES/SLOTS |
| MOUNTING HOLE DIAMETER | 0.113 INCHES MINIMUM AND 0.119 INCHES MAXIMUM |
| BODY MOUNTING HOLE ACCOMMODATION LENGTH | 1.065 INCHES MINIMUM AND 1.085 INCHES MAXIMUM |
| BODY MOUNTING HOLE ACCOMMODATION WIDTH | 0.540 INCHES MINIMUM AND 0.560 INCHES MAXIMUM |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.396 INCHES MINIMUM AND 1.416 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.112 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 40 |
| THREAD DIRECTION | RIGHT-HAND |
| POLARIZATION TYPE | OFF CENTER HOLE |
| FURNISHED ITEMS AND QUANTITY | 1 GASKET |
| PRECIOUS MATERIAL | GOLD |
| PRECIOUS MATERIAL AND WEIGHT | 0.008 GOLD GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
