Part Details | ELECTRICAL CONNECTOR COVER
5935-00-071-9920 A device specifically designed to fully or partially inclose an electrical connector to protect its mating end from mechanical damage. Excludes CAP, ELECTRICAL; CAP, PROTECTIVE, DUST AND MOISTURE SEAL; and GUARD, ELECTRICAL CONNECTOR. See also COVER AND GUARD, ELECTRICAL CONNECTOR; SHELL, ELECTRICAL CONNECTOR; and SHIELD, ELECTRICAL CONNECTOR.
Alternate Parts: 13B22835E101, 1511110055, 151-11-10-055, NA710645, NA-710645, 1987052, 5935-00-071-9920, 00-071-9920, 5935000719920, 000719920
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 20, 1967 | 00-071-9920 | 15076 ( COVER, ELECTRICAL CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

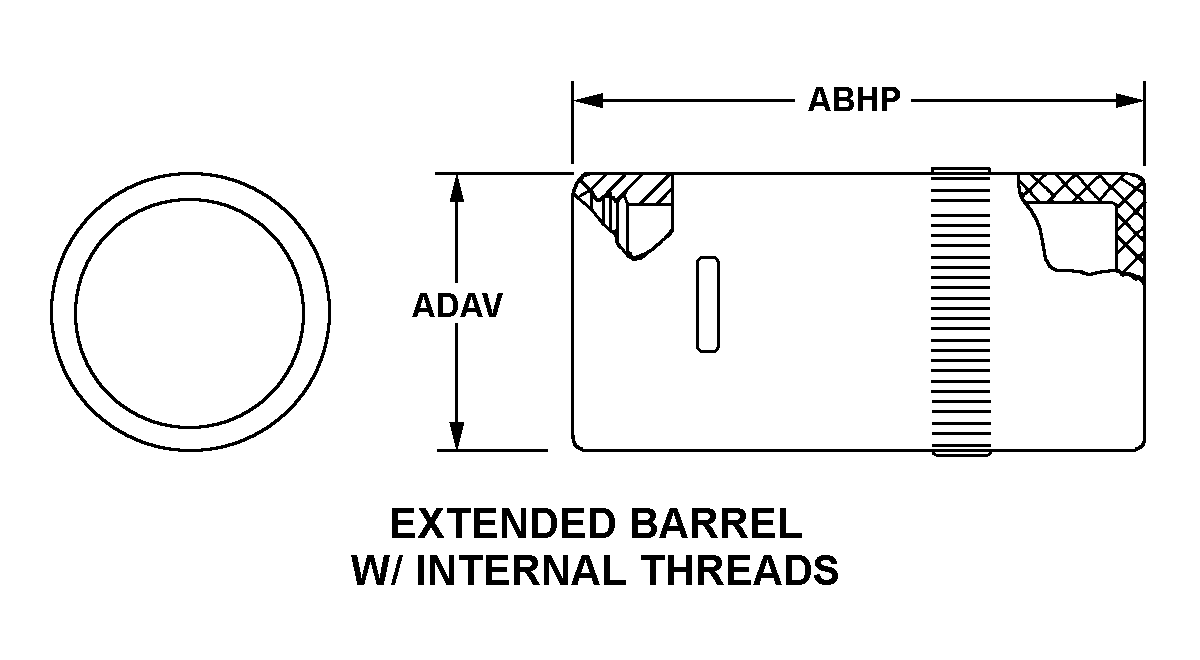

EXTENDED BARREL W/INTERNAL THREADS
Cross Reference | NSN 5935-00-071-9920
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 13B22835E101 | 71785 | CINCH CONNECTORS, INC. |
| 151-11-10-055 | 71785 | CINCH CONNECTORS, INC. |
| NA-710645 | 56232 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
| 1987052 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
Technical Data | NSN 5935-00-071-9920
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | EXTENDED BARREL W/INTERNAL THREADS |
| OVERALL LENGTH | 1.500 INCHES MAXIMUM |
| OVERALL DIAMETER | 1.000 INCHES NOMINAL |
| MATERIAL | COPPER ALLOY |
| SURFACE TREATMENT | CADMIUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 SPRING TENSION |
