Part Details | PLUG DUMMY CONNECTOR
5935-00-072-1417 An item specifically designed to mate with another connector to perform one or more special functions, such as to act as a cover or shield, to short contacts, or to open or close electrical circuits, in or on another connector. It cannot be used as a CONNECTOR, PLUG, ELECTRICAL. Excludes DUMMY PLUG,TELEPHONE.
Alternate Parts: 2315548, 186046, 1860406, 5935-00-072-1417, 00-072-1417, 5935000721417, 000721417
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-072-1417 | 15094 ( DUMMY CONNECTOR, PLUG ) |
REFERENCE DRAWINGS & PICTURES

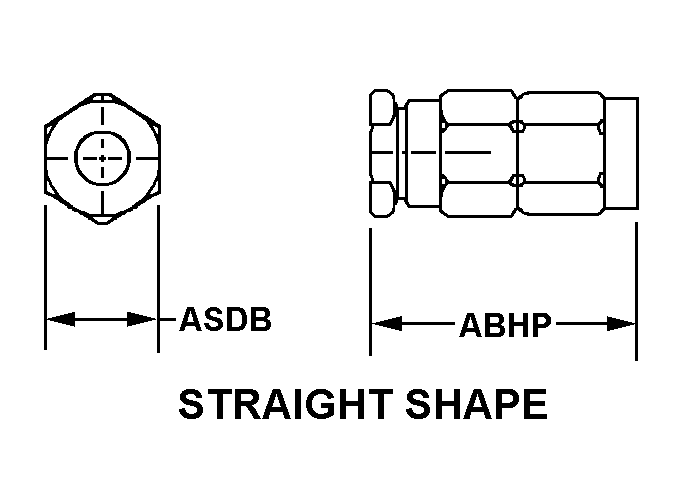

STRAIGHT SHAPE
Cross Reference | NSN 5935-00-072-1417
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2315548 | 56232 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
| 186046 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
| 1860406 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
Technical Data | NSN 5935-00-072-1417
| Characteristic | Specifications |
|---|---|
| BODY STYLE | STRAIGHT SHAPE |
| OVERALL LENGTH | 0.719 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.375 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | BAYONET LATCH |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | COPPER ALLOY |
| SHELL MATERIAL DOCUMENT AND CLASSIFICATION | QQ-B-626 FED SPEC SINGLE MATERIAL RESPONSE |
| SHELL SURFACE TREATMENT | NICKEL |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-N-290 FED SPEC SINGLE TREATMENT RESPONSE |
| MATING END QUANTITY | 1 |
| PRECIOUS MATERIAL | SILVER |
| PRECIOUS MATERIAL AND WEIGHT | 0.005 SILVER GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACE SILVER |
