Part Details | ELECTRICAL CONNECTOR GUARD
5935-00-072-3095 An item specifically designed to prevent damage to the mating end of an electrical connector. The contacts of the connector mating end are left exposed for connection. Excludes COVER, ELECTRICAL CONNECTOR. See also COVER AND GUARD, ELECTRICAL CONNECTOR.
Alternate Parts: 153760, 153760, 153760, 5935-00-072-3095, 00-072-3095, 5935000723095, 000723095
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 22, 1967 | 00-072-3095 | 24289 ( GUARD, ELECTRICAL CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

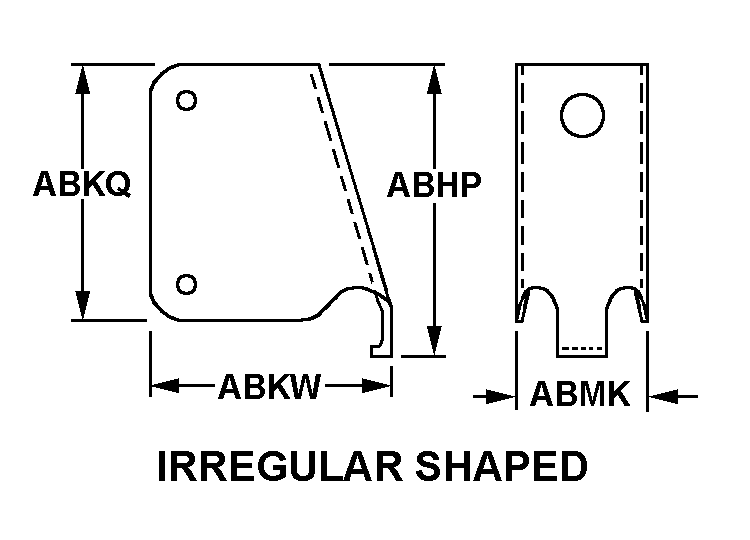

IRREGULAR SHAPED
Cross Reference | NSN 5935-00-072-3095
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 153760 | 49956 | RAYTHEON COMPANYDBA RAYTHEON |
| 153760 | 3B150 | RAYTHEON COMPANYDBA RAYTHEON |
| 153760 | 54X10 | RAYTHEON COMPANYDBA RAYTHEON |
Technical Data | NSN 5935-00-072-3095
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | IRREGULAR SHAPED |
| MATERIAL | PLASTIC TETRAFLUOROETHYLENE |
| MOUNTING FACILITY TYPE AND QUANTITY | 3 THREADED HOLE |
| OVERALL HEIGHT | 0.366 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.216 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 24 |
| THREAD DIRECTION | RIGHT-HAND |
