Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-072-4191 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 331C038H02, 605B551H01, SI 8575, 5935-00-072-4191, 00-072-4191, 5935000724191, 000724191
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 22, 1967 | 00-072-4191 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
PCB MOUNT W/SHIELD BASE

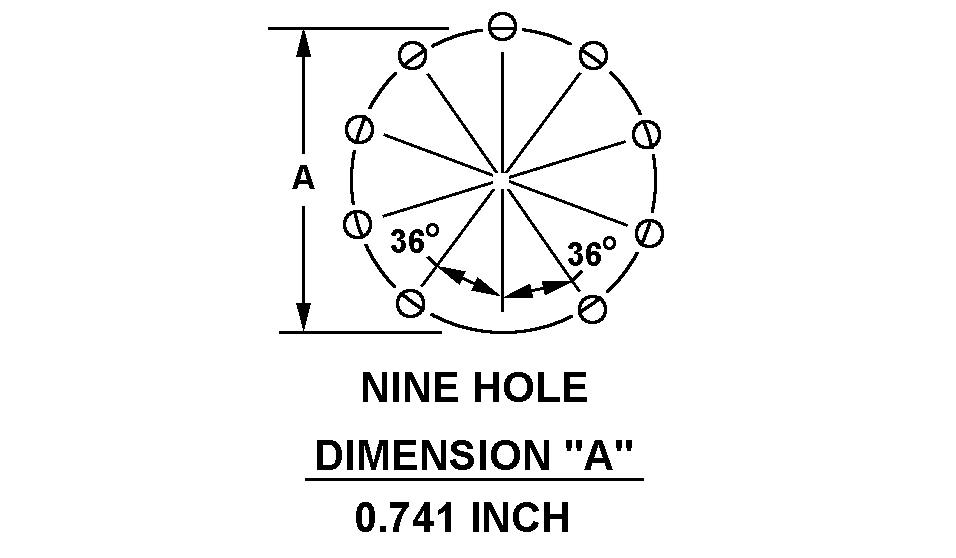

NINE HOLE DIMENSION "A" 0.741 INCH
CIRCULAR
Cross Reference | NSN 5935-00-072-4191
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 331C038H02 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV NORTHROP GRUMMAN SYSTEMS |
| 605B551H01 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV NORTHROP GRUMMAN SYSTEMS |
| SI 8575 | 55097 | SHILOH INDUSTRIES, INC. |
Technical Data | NSN 5935-00-072-4191
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | CIRCULAR |
| ACCOMMODATED CONTACT QUANTITY | 9 |
| CONTACT MATERIAL | PHOSPHOR BRONZE |
| CONTACT SURFACE TREATMENT | TIN |
| BODY STYLE | PCB MOUNT W/SHIELD BASE |
| TERMINAL LENGTH | 0.190 INCHES NOMINAL |
| OVERALL HEIGHT | 0.533 INCHES NOMINAL |
| OVERALL DIAMETER | 0.843 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 9 PRINTED CIRCUIT |
| MOUNTING TYPE FOR WHICH DESIGNED | PRINTED CIRCUIT |
| MOUNTING METHOD | TERMINAL |
| PRINTED CIRCUIT BOARD HOLE ARRANGEMENT STYLE | NINE HOLE DIMENSION "A" 0.741 INCH |
| SPECIAL FEATURES | CENTER HOLE IS 0.250 IN. DIA |
