Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-073-2611 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: LS910410, LS9104-10, 5935-00-073-2611, 00-073-2611, 5935000732611, 000732611
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-073-2611 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
TOP MOUNT
RECTANGULAR, W/TWO MOUNTING HOLES/SLOTS

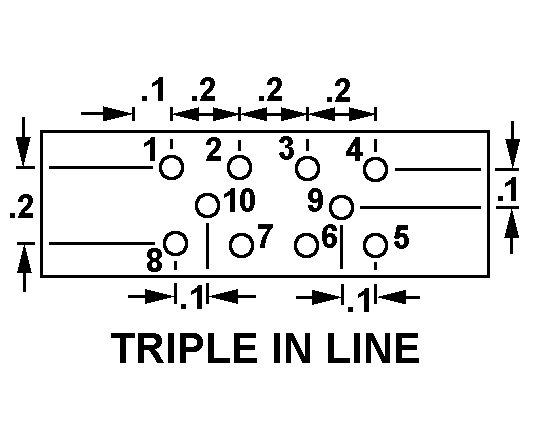

TRIPLE IN LINE
Cross Reference | NSN 5935-00-073-2611
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| LS9104-10 | 98897 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN AERONAUTICS |
Technical Data | NSN 5935-00-073-2611
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | TRIPLE IN LINE |
| ACCOMMODATED CONTACT QUANTITY | 10 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 5.0 |
| CONTACT MATERIAL | ANY ACCEPTABLE |
| CONTACT SURFACE TREATMENT | ANY ACCEPTABLE |
| BODY STYLE | TOP MOUNT |
| OVERALL LENGTH | 1.335 INCHES MINIMUM AND 1.355 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.580 INCHES MINIMUM AND 0.590 INCHES MAXIMUM |
| OVERALL WIDTH | 0.395 INCHES MINIMUM AND 0.405 INCHES MAXIMUM |
| PROJECTION LENGTH ABOVE MOUNTING SURFACE | 0.277 INCHES MINIMUM AND 0.297 INCHES MAXIMUM |
| BODY MATERIAL | ANY ACCEPTABLE |
| TERMINAL TYPE AND QUANTITY | 10 SOLDER WELL |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING HOLE STYLE | RECTANGULAR, W/TWO MOUNTING HOLES/SLOTS |
| MOUNTING HOLE DIAMETER | 0.125 INCHES MINIMUM AND 0.130 INCHES MAXIMUM |
| BODY MOUNTING HOLE ACCOMMODATION LENGTH | 0.760 INCHES MINIMUM AND 0.770 INCHES MAXIMUM |
| BODY MOUNTING HOLE ACCOMMODATION WIDTH | 0.395 INCHES MINIMUM AND 0.405 INCHES MAXIMUM |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.058 INCHES MINIMUM AND 1.066 INCHES MAXIMUM |
| POLARIZATION TYPE | CONTACT POSITION |
| SPECIFIC EQUIPMENT ACCOMMODATED | CRYSTAL CAN RELAY |
