Part Details | ELECTRICAL CONNECTOR BRACKET
5935-00-073-3248 A bracket designed to be attached to a supporting surface for the specific purpose of positioning and sustaining an electrical connector(s). Excludes BRACKET, ANGLE. See also PLATE, RETAINING, ELECTRICAL CONNECTOR.
Alternate Parts: 5162567001, 516-2567-001, 5162567001, 516-2567-001, 5935-00-073-3248, 00-073-3248, 5935000733248, 000733248
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-073-3248 | 60134 ( BRACKET, ELECTRICAL CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

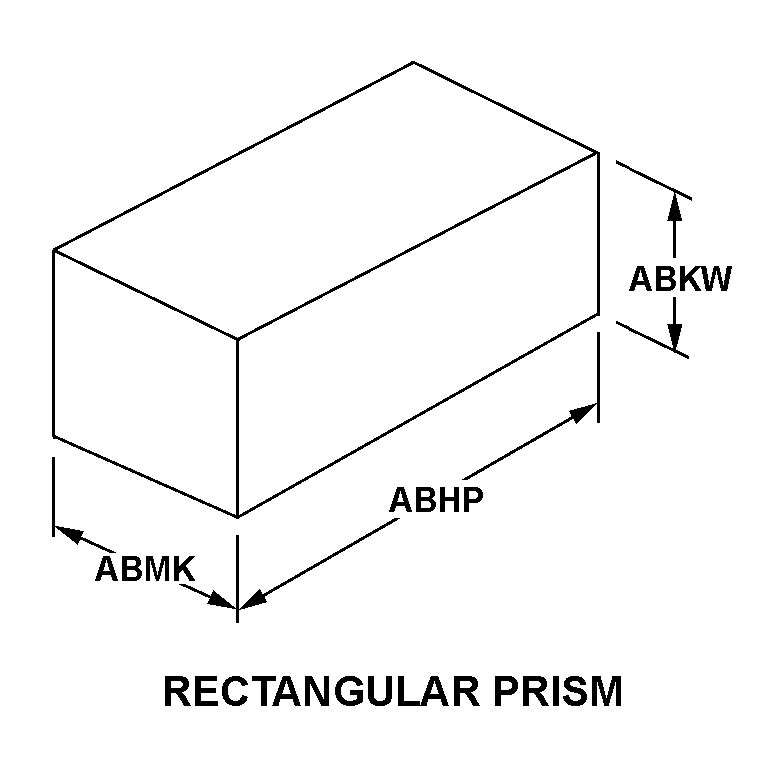

RECTANGULAR PRISM
Cross Reference | NSN 5935-00-073-3248
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 516-2567-001 | 95104 | ALCATEL-LUCENT HOLDINGS INC. |
| 516-2567-001 | 13499 | ROCKWELL COLLINS, INC.DBA GOVERNMENT SYSTEMS |
Technical Data | NSN 5935-00-073-3248
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | RECTANGULAR PRISM |
| OVERALL LENGTH | 0.750 INCHES NOMINAL |
| OVERALL HEIGHT | 0.312 INCHES NOMINAL |
| OVERALL WIDTH | 0.375 INCHES NOMINAL |
| MATERIAL | ALUMINUM |
| SURFACE TREATMENT | CHROMATE |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 THREADED HOLE |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.073 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 72 |
| THREAD DIRECTION | RIGHT-HAND |
