Part Details | ELECTRICAL CONNECTOR BACKSHELL
5935-00-073-8285 An item specifically designed to be placed around that portion of a CONNECTOR, RECEPTABLE, ELECTRICAL or CONNECTOR, PLUG, ELECTRICAL which contains the facilities for attaching wires or cables. It may be designed to provide the necessary accomodations between an electrical cable clamping device and an electrical connector shell, or it may include the clamping device. It may be used for shielding against electrical interference, mechanical injury, or physical damage due to environmental conditions.
Alternate Parts: 576R406H02, 576R406H02, 5935-00-073-8285, 00-073-8285, 5935000738285, 000738285
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-073-8285 | 67169 ( BACKSHELL, ELECTRICAL CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

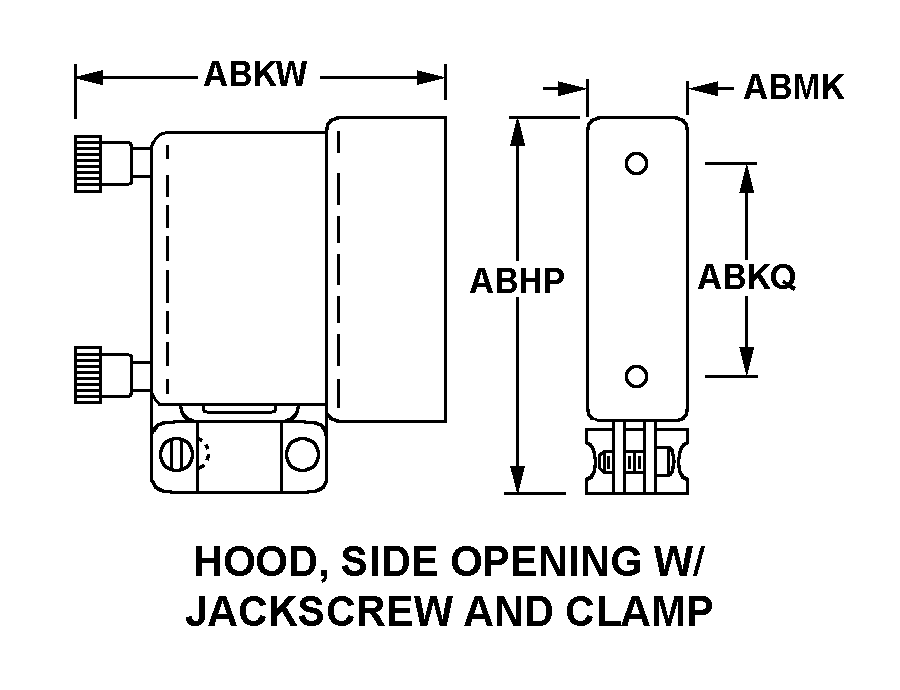

HOOD, SIDE OPENING W/JACKSCREW AND CLAMP
Cross Reference | NSN 5935-00-073-8285
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 576R406H02 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV NORTHROP GRUMMAN SYSTEMS |
| 576R406H02 | 79500 | WESTINGHOUSE ELECTRIC CORP |
Technical Data | NSN 5935-00-073-8285
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | HOOD, SIDE OPENING W/JACKSCREW AND CLAMP |
| OVERALL LENGTH | 1.750 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 0.937 INCHES NOMINAL |
| OVERALL HEIGHT | 1.890 INCHES NOMINAL |
| OVERALL WIDTH | 0.520 INCHES NOMINAL |
| MATERIAL | ALUMINUM |
| SURFACE TREATMENT | ANODIZE |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 THREADED STUD |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 4.000 INCHES |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| CABLE OPENING QUANTITY | 1 |
| CABLE OPENING LENGTH | 0.750 INCHES NOMINAL |
| CABLE OPENING WIDTH | 0.380 INCHES NOMINAL |
