Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-075-7876 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: E115REVB, E115, 5935-00-075-7876, 00-075-7876, 5935000757876, 000757876
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-075-7876 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES

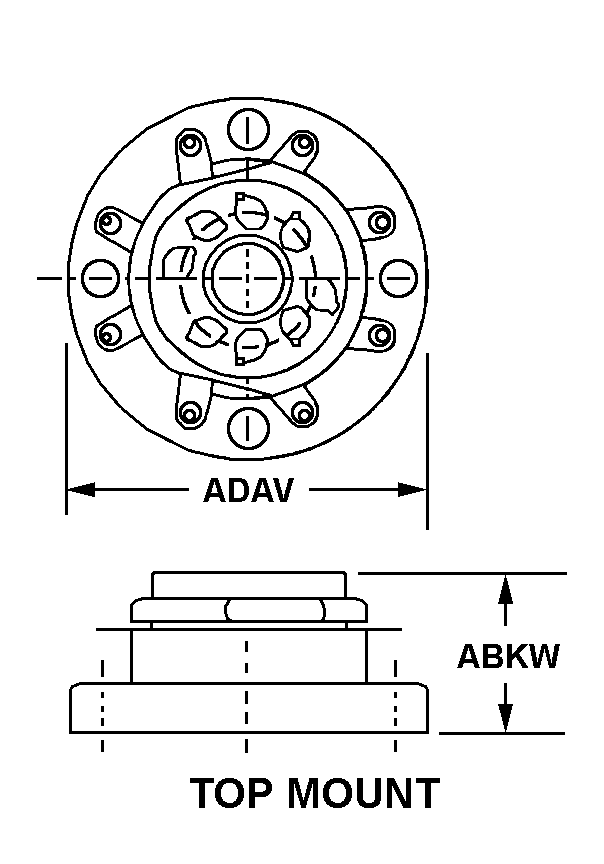

TOP MOUNT
TWO MOUNTING HOLES/SLOTS, IN-LINE
Cross Reference | NSN 5935-00-075-7876
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| E115REVB | 78277 | SIGMA INSTRUMENTS INC |
| E115 | 78277 | SIGMA INSTRUMENTS INC |
Technical Data | NSN 5935-00-075-7876
| Characteristic | Specifications |
|---|---|
| ACCOMMODATED CONTACT QUANTITY | 8 |
| CONTACT MATERIAL | ANY ACCEPTABLE |
| CONTACT SURFACE TREATMENT | ANY ACCEPTABLE |
| BODY STYLE | TOP MOUNT |
| OVERALL HEIGHT | 0.562 INCHES NOMINAL |
| OVERALL DIAMETER | 2.250 INCHES NOMINAL |
| BODY MATERIAL | ANY ACCEPTABLE |
| TERMINAL TYPE AND QUANTITY | 8 SCREW |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING HOLE STYLE | TWO MOUNTING HOLES/SLOTS, IN-LINE |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.875 INCHES NOMINAL |
