Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-076-0238 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 42231, 4223-1, JLA49319, JL/A4-9319, 5935-00-076-0238, 00-076-0238, 5935000760238, 000760238
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-076-0238 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
TOP MOUNT W/STUDS
RECTANGULAR, W/TWO MOUNTING HOLES/SLOTS

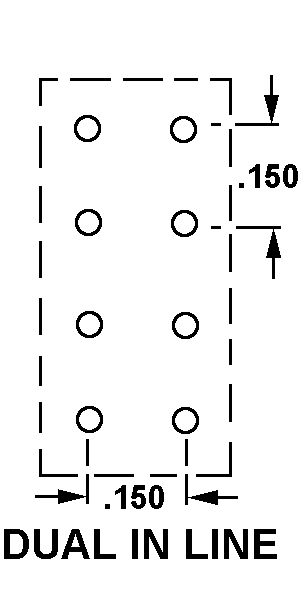

DUAL IN LINE
Cross Reference | NSN 5935-00-076-0238
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4223-1 | 99699 | DRI RELAYS INC. |
| JL/A4-9319 | K1980 | PETARDS JOYCE-LOEBL LTDDBA P J L |
Technical Data | NSN 5935-00-076-0238
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | DUAL IN LINE |
| ACCOMMODATED CONTACT QUANTITY | 8 |
| CONTACT MATERIAL | COPPER |
| CONTACT SURFACE TREATMENT | U0000 ANY ACCEPTABLE |
| BODY STYLE | TOP MOUNT W/STUDS |
| OVERALL LENGTH | 1.343 INCHES NOMINAL |
| OVERALL HEIGHT | 0.812 INCHES NOMINAL |
| OVERALL WIDTH | 0.406 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 8 SOLDER WELL |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | THREADED STUD |
| MOUNTING HOLE STYLE | RECTANGULAR, W/TWO MOUNTING HOLES/SLOTS |
| PRECIOUS MATERIAL | GOLD |
| PRECIOUS MATERIAL AND WEIGHT | 0.008 GOLD GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
