Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-076-1629 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: HRP1M, 91217001, 91217-001, 2271068, 5935-00-076-1629, 00-076-1629, 5935000761629, 000761629
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-076-1629 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
TOP OR BOTTOM MOUNT W/MOLDED SADDLE
TWO MOUNTING HOLES/SLOTS, IN-LINE

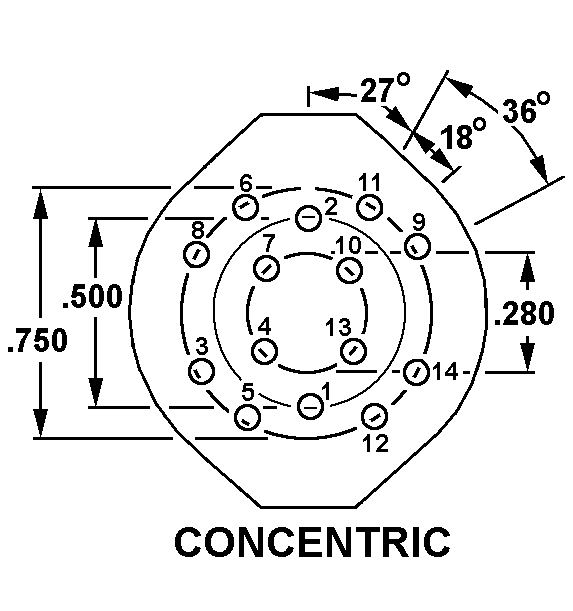

CONCENTRIC
Cross Reference | NSN 5935-00-076-1629
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HRP1M | 91663 | ARMEL ELECTRONICS INC |
| 91217-001 | 07421 | INTERSTATE ELECTRONICS CORPORATIONDBA L-3 INTERSTATE ELECTRONICS |
| 2271068 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Technical Data | NSN 5935-00-076-1629
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | CONCENTRIC |
| ACCOMMODATED CONTACT QUANTITY | 14 |
| CONTACT MATERIAL | COPPER ALLOY |
| CONTACT SURFACE TREATMENT | U0000 ANY ACCEPTABLE |
| BODY STYLE | TOP OR BOTTOM MOUNT W/MOLDED SADDLE |
| OVERALL LENGTH | 2.000 INCHES NOMINAL |
| OVERALL HEIGHT | 0.906 INCHES NOMINAL |
| OVERALL WIDTH | 0.656 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 14 SOLDER STUD |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING HOLE STYLE | TWO MOUNTING HOLES/SLOTS, IN-LINE |
| MOUNTING HOLE DIAMETER | 0.156 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.594 INCHES NOMINAL |
| POLARIZATION TYPE | COLORED DOT |
| SPECIFIC EQUIPMENT ACCOMMODATED | RELAY |
| FABRICATION METHOD | MOLDED |
| PRECIOUS MATERIAL | GOLD |
| PRECIOUS MATERIAL AND WEIGHT | 0.014 GOLD GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
