Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-076-3024 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: WPSC, 46451742, 4-6451-742, WP5C, 499044028, 499-044-028, 377410022, 377-410-022, 204264, WPSC, 430049, X1061, X106-1, 70312, 70-312, 204264, 10304428, 5935-00-076-3024, 00-076-3024, 5935000763024, 000763024
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-076-3024 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES

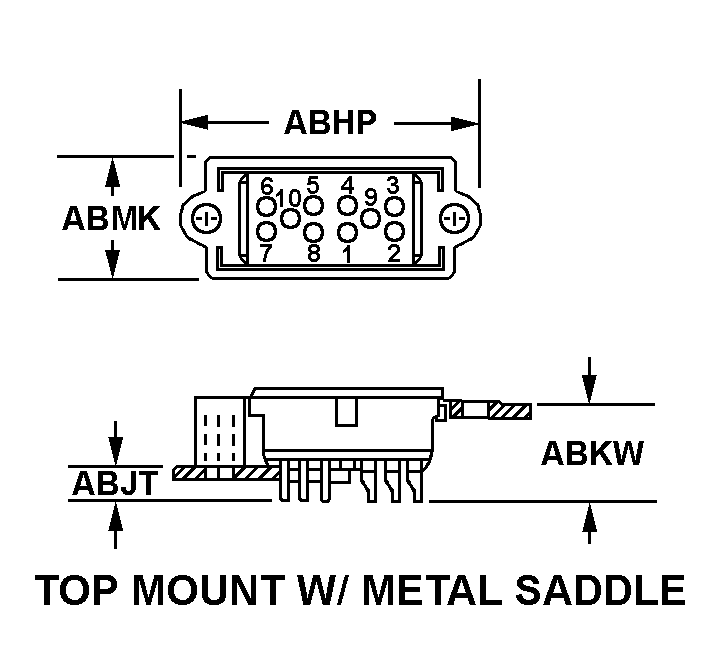

TOP MOUNT W/METAL SADDLE
RECTANGULAR, W/TWO MOUNTING HOLES/SLOTS

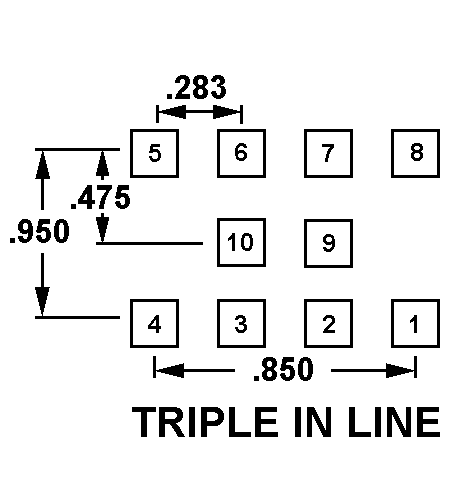

TRIPLE IN LINE
Cross Reference | NSN 5935-00-076-3024
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| WPSC | 76854 | ELECTRO SWITCH CORP.DBA OAK GRISGSBY |
| 4-6451-742 | 76854 | ELECTRO SWITCH CORP.DBA OAK GRISGSBY |
| WP5C | 76854 | ELECTRO SWITCH CORP.DBA OAK GRISGSBY |
| 499-044-028 | 07421 | INTERSTATE ELECTRONICS CORPORATIONDBA L-3 INTERSTATE ELECTRONICS |
| 377-410-022 | 07421 | INTERSTATE ELECTRONICS CORPORATIONDBA L-3 INTERSTATE ELECTRONICS |
| 204264 | 06KW9 | LUCENT TECHNOLOGIES INCDBA FEDERAL MARKETING GROUP |
| WPSC | 29238 | OAK INDUSTRIES INC SWITCH DIV |
| 430049 | 36378 | RAYTHEON TECHNICAL SERVICES COMPANY |
| X106-1 | 36378 | RAYTHEON TECHNICAL SERVICES COMPANY |
| 70-312 | 94696 | SE RELAYS LLC MAGNECRAFTDIV SE RELAYS LLC MAGNECRAFT |
| 204264 | 14028 | SYPRIS ELECTRONICS, LLC |
| 10304428 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 5935-00-076-3024
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | TRIPLE IN LINE |
| ACCOMMODATED CONTACT QUANTITY | 10 |
| CONTACT MATERIAL | COPPER ALLOY |
| CONTACT SURFACE TREATMENT | G0000 ANY ACCEPTABLE |
| BODY STYLE | TOP MOUNT W/METAL SADDLE |
| OVERALL LENGTH | 2.594 INCHES NOMINAL |
| OVERALL HEIGHT | 1.000 INCHES NOMINAL |
| OVERALL WIDTH | 1.750 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 10 TAB, SOLDER LUG |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING HOLE STYLE | RECTANGULAR, W/TWO MOUNTING HOLES/SLOTS |
| MOUNTING HOLE DIAMETER | 0.188 INCHES NOMINAL |
| BODY MOUNTING HOLE ACCOMMODATION LENGTH | 1.275 INCHES NOMINAL |
| BODY MOUNTING HOLE ACCOMMODATION WIDTH | 1.478 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 2.125 INCHES NOMINAL |
| POLARIZATION TYPE | CONTACT POSITION |
| FEATURES PROVIDED | COMPONENT RETAINING DEVICE |
| SPECIFIC EQUIPMENT ACCOMMODATED | RELAY |
| FABRICATION METHOD | MOLDED |
| PRECIOUS MATERIAL | SILVER |
| PRECIOUS MATERIAL AND WEIGHT | 0.010 SILVER GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES SILVER |
