Part Details | ELECTRICAL PLUG CONNECTOR
5935-00-079-0718 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: 1163095P1, 5935-00-079-0718, 00-079-0718, 5935000790718, 000790718
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1961 | 00-079-0718 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

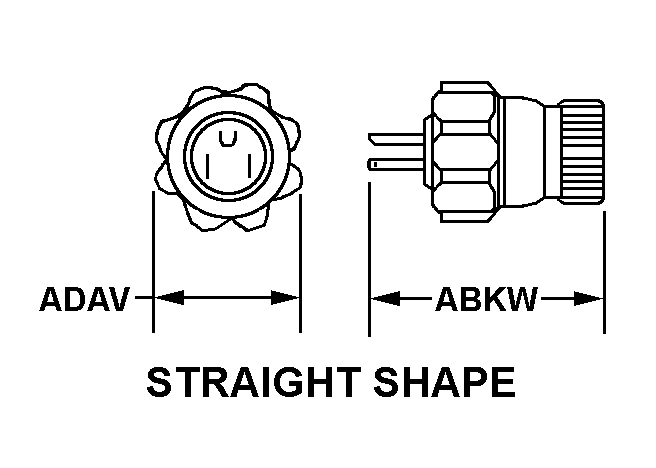

STRAIGHT SHAPE
Cross Reference | NSN 5935-00-079-0718
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1163095P1 | 94117 | BAE SYSTEMS INFORMATION ANDELECTRONIC SYSTEMS INTEGRATION INC. |
Technical Data | NSN 5935-00-079-0718
| Characteristic | Specifications |
|---|---|
| BODY STYLE | STRAIGHT SHAPE |
| OVERALL HEIGHT | 0.531 INCHES NOMINAL |
| OVERALL DIAMETER | 0.468 INCHES NOMINAL |
| CONNECTOR CABLE STRAIN RELIEF METHOD | CABLE CLAMP |
| CABLE ENTRANCE DIAMETER | 0.203 INCHES MAXIMUM |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | PLASTIC MELAMINE |
| SHELL MATERIAL DOCUMENT AND CLASSIFICATION | MIL-M-14E,TY MME FED SPEC SINGLE MATERIAL RESPONSE |
| POLARIZATION METHOD | CONTACT |
| MATING END QUANTITY | 1 |
| PRECIOUS MATERIAL | GOLD AND SILVER |
| PRECIOUS MATERIAL AND WEIGHT | 0.007 GOLD GRAINS, TROY AND 0.007 SILVER GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD AND CONTACT SURFACES SILVER |
