Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-079-5905 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 77M1P4T, 77M1P4T, 5935-00-079-5905, 00-079-5905, 5935000795905, 000795905
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-079-5905 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES

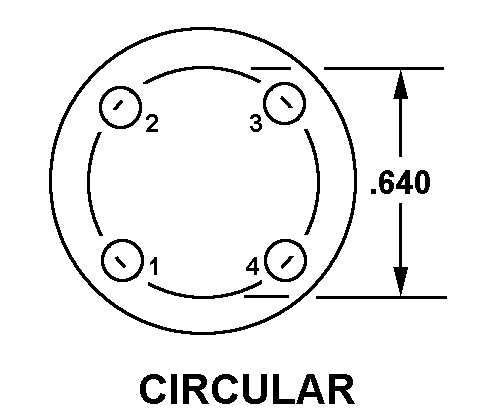

CIRCULAR
Cross Reference | NSN 5935-00-079-5905
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 77M1P4T | 77820 | AMPHENOL CORPORATIONDBA AMPHENOL AEROSPACE OPERATIONS |
| 77M1P4T | 02660 | AMPHENOL CORPSPECTRA-STRIP/ITD |
Technical Data | NSN 5935-00-079-5905
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | CIRCULAR |
| ACCOMMODATED CONTACT QUANTITY | 4 |
| CONTACT MATERIAL | COPPER ALLOY |
| SPECIAL FEATURES | TERMINAL TYPE TAB,SOLDER LUG |
