Part Details | ELECTRICAL PLUG CONNECTOR
5935-00-080-4366 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: 232FC, 232FC, 232FC18, 829562, 5935-00-080-4366, 00-080-4366, 5935000804366, 000804366
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-080-4366 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

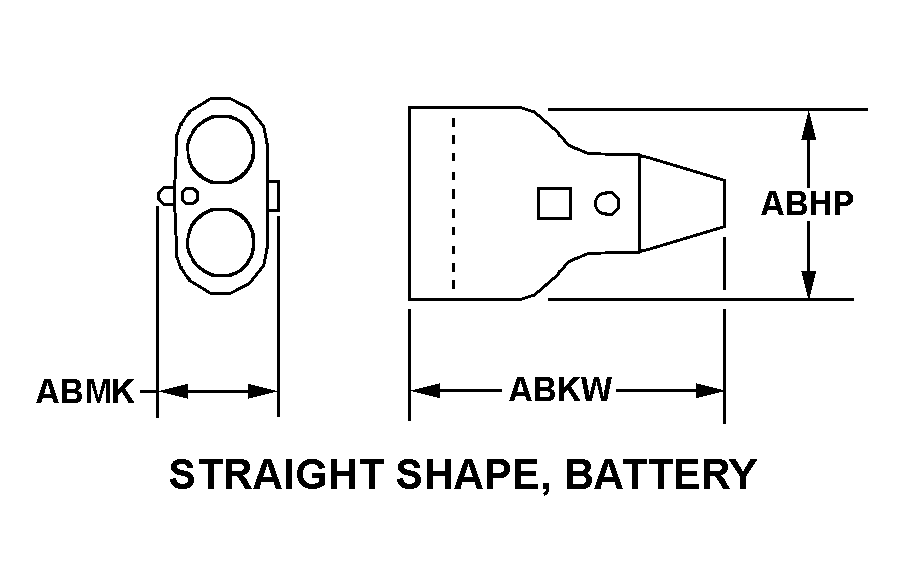

STRAIGHT SHAPE, BATTERY
Cross Reference | NSN 5935-00-080-4366
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 232FC | 04855 | AEIRE CORP |
| 232FC | 01009 | ALDEN PRODUCTS COMPANY INC |
| 232FC18 | 01009 | ALDEN PRODUCTS COMPANY INC |
| 829562 | 06141 | L3 AVIATION PRODUCTS, INC. |
Technical Data | NSN 5935-00-080-4366
| Characteristic | Specifications |
|---|---|
| BODY STYLE | STRAIGHT SHAPE, BATTERY |
| OVERALL LENGTH | 0.688 INCHES NOMINAL |
| OVERALL HEIGHT | 0.562 INCHES NOMINAL |
| OVERALL WIDTH | 0.375 INCHES NOMINAL |
| MATING END QUANTITY | 1 |
| ENVIRONMENTAL PROTECTION | HEAT RESISTANT AND SHOCK PROOF AND VIBRATION RESISTANT |
