Part Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-00-080-6959 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: 133, 371023900, 371-0239-00, 3710239000, 371-0239-000, 133, 133, 5935-00-080-6959, 00-080-6959, 5935000806959, 000806959
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1961 | 00-080-6959 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

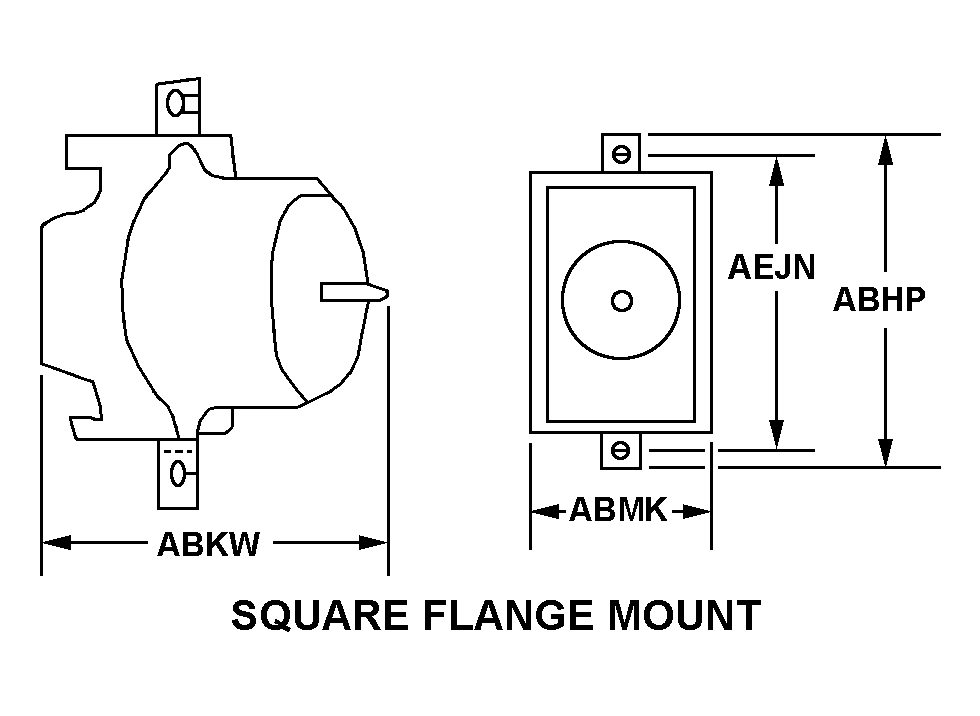

SQUARE FLANGE MOUNT
Cross Reference | NSN 5935-00-080-6959
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 133 | 8X044 | DERCO AEROSPACE, INC. |
| 371-0239-00 | 13499 | ROCKWELL COLLINS, INC.DBA GOVERNMENT SYSTEMS |
| 371-0239-000 | 95105 | ROCKWELL COLLINS, INC.DIV GOVERNMENT SYSTEMS - DALLAS |
| 133 | 12613 | THALER MACHINE COMPANY, THE |
| 133 | 12615 | U S TERMINALS INC |
Technical Data | NSN 5935-00-080-6959
| Characteristic | Specifications |
|---|---|
| BODY STYLE | SQUARE FLANGE MOUNT |
| OVERALL LENGTH | 1.312 INCHES NOMINAL |
| OVERALL HEIGHT | 0.785 INCHES NOMINAL |
| OVERALL WIDTH | 0.500 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 0.981 INCHES MINIMUM AND 0.987 INCHES MAXIMUM |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.122 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | FRICTION |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | STEEL |
| SHELL SURFACE TREATMENT | COPPER AND CADMIUM AND CHROMATE |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 FED SPEC 2ND TREATMENT RESPONSE AND QQ-P-416 FED SPEC 3RD TREATMENT RESPONSE |
| MATING END QUANTITY | 1 |
| ENVIRONMENTAL PROTECTION | MOISTURE RESISTANT AND SALT WATER RESISTANT AND VIBRATION RESISTANT |
| PRECIOUS MATERIAL | GOLD AND SILVER |
| PRECIOUS MATERIAL AND WEIGHT | 0.001 GOLD GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD AND CONTACT SURFACES SILVER |
