Part Details | ELECTRICAL PLUG CONNECTOR
5935-00-080-9226 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: PP25GB, 5935-00-080-9226, 00-080-9226, 5935000809226, 000809226
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1961 | 00-080-9226 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

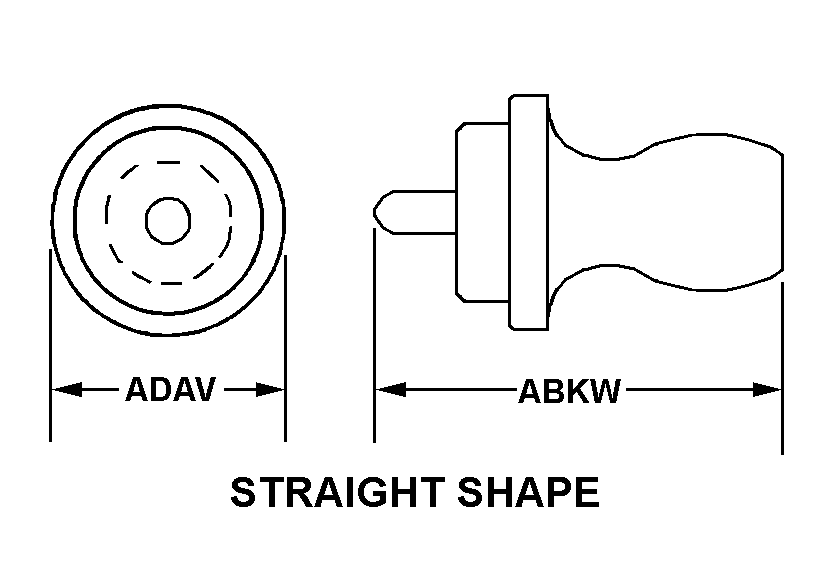

STRAIGHT SHAPE
Cross Reference | NSN 5935-00-080-9226
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PP25GB | 58474 | SUPERIOR ELECTRIC HOLDING GROUP LLCDBA SUPERIOR ELECTRIC |
Technical Data | NSN 5935-00-080-9226
| Characteristic | Specifications |
|---|---|
| BODY STYLE | STRAIGHT SHAPE |
| OVERALL HEIGHT | 2.660 INCHES NOMINAL |
| OVERALL DIAMETER | 1.000 INCHES NOMINAL |
| COLOR | BLACK |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | PLASTIC |
| MATING END QUANTITY | 1 |
| PRECIOUS MATERIAL | GOLD |
| PRECIOUS MATERIAL AND WEIGHT | 0.001 GOLD GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACE GOLD |
