Part Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-00-081-1506 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: 7748694, 752, 752DELUXE, 752, 752, 7748694, 5935-00-081-1506, 00-081-1506, 5935000811506, 000811506
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-081-1506 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

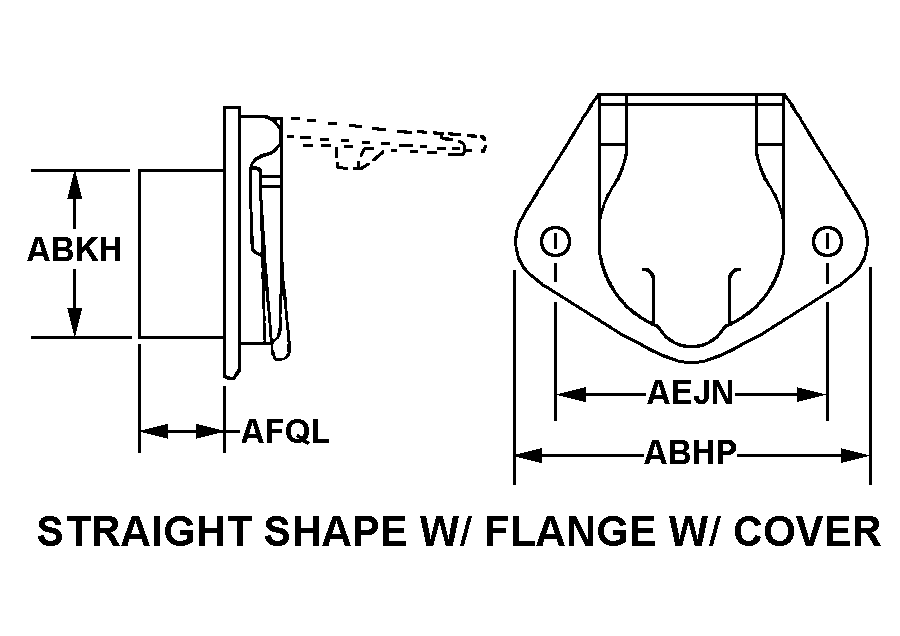

STRAIGHT SHAPE W/FLANGE W/COVER
Cross Reference | NSN 5935-00-081-1506
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7748694 | 19204 | ARMY, UNITED STATES DEPARTMENT OFTHE |
| 752 | 16662 | LIFT PARTS MFG CO INCDIV OF ECHLIN MFG CO THE |
| 752DELUXE | 98343 | MIDLAND BRAKE INCDIV OF ECHLIN INC |
| 752 | 98343 | MIDLAND BRAKE INCDIV OF ECHLIN INC |
| 752 | 66654 | TVH PARTS CO. |
| 7748694 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 5935-00-081-1506
| Characteristic | Specifications |
|---|---|
| BODY STYLE | STRAIGHT SHAPE W/FLANGE W/COVER |
| OVERALL LENGTH | 3.938 INCHES NOMINAL |
| BUSHING DIAMETER | 1.875 INCHES NOMINAL |
| OVERALL HEIGHT | 2.313 INCHES NOMINAL |
| OVERALL WIDTH | 2.938 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 2.938 INCHES NOMINAL |
| DISTANCE FROM MOUNTING SHOULDER TO REAR FACE | 2.000 INCHES NOMINAL |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.348 INCHES NOMINAL |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | IRON |
| MATING END QUANTITY | 1 |
