Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-082-0301 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 80131G5A, 8013-1G5A, 80131G2A, 8013-1G2A, 80051G3, 8005-1G3, 587C97, 0301, 2239976, 650.00270 AND 650.01060, 650.0027-0 AND 650.0106-0, 80131G5A, 8013-1G5A, 80051G3, 8005-1G3, 5935-00-082-0301, 00-082-0301, 5935000820301, 000820301
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-082-0301 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
TOP MOUNT W/VERTICAL CLAMP
RECTANGULAR, W/TWO MOUNTING HOLES/SLOTS

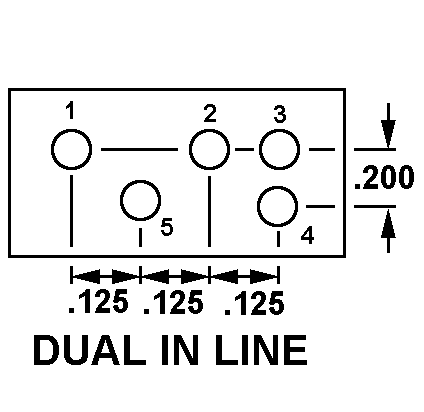

DUAL IN LINE
Cross Reference | NSN 5935-00-082-0301
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8013-1G5A | 91506 | AUGAT INC |
| 8013-1G2A | 91506 | AUGAT INC |
| 8005-1G3 | 91506 | AUGAT INC |
| 587C97 | 94033 | CARDWELL CONDENSER CORPLAPOINTE-ADMIRAL DIV |
| 0301 | 56742 | CHARLES V CLARK CO. |
| 2239976 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
| 650.0027-0 AND 650.0106-0 | 55001 | SCAN-GRAPHICS INC |
| 8013-1G5A | 00779 | TE CONNECTIVITY CORPORATIONDBA TE CONNECTIVITY |
| 8005-1G3 | 00779 | TE CONNECTIVITY CORPORATIONDBA TE CONNECTIVITY |
Technical Data | NSN 5935-00-082-0301
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | DUAL IN LINE |
| ACCOMMODATED CONTACT QUANTITY | 5 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 5.0 |
| CONTACT MATERIAL | PHOSPHOR BRONZE |
| CONTACT SURFACE TREATMENT | G0000 ANY ACCEPTABLE |
| BODY STYLE | TOP MOUNT W/VERTICAL CLAMP |
| OVERALL LENGTH | 1.266 INCHES MAXIMUM |
| TERMINAL LENGTH | 0.156 INCHES NOMINAL |
| OVERALL HEIGHT | 1.266 INCHES MAXIMUM |
| OVERALL WIDTH | 0.531 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 8 CLIP |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | BODY THROUGH HOLE |
| MOUNTING HOLE STYLE | RECTANGULAR, W/TWO MOUNTING HOLES/SLOTS |
| MOUNTING HOLE DIAMETER | 0.093 INCHES NOMINAL |
| BODY MOUNTING HOLE ACCOMMODATION LENGTH | 0.790 INCHES NOMINAL |
| BODY MOUNTING HOLE ACCOMMODATION WIDTH | 0.365 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.000 INCHES NOMINAL |
| POLARIZATION TYPE | CONTACT POSITION |
| FEATURES PROVIDED | SHOCK MOUNTS AND COMPONENT RETAINING DEVICE |
| PRECIOUS MATERIAL | SILVER |
| PRECIOUS MATERIAL AND WEIGHT | 0.005 SILVER GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES SILVER |
