Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-085-0723 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 53P24301, 1115100066, 111-51-00-066, 5935-00-085-0723, 00-085-0723, 5935000850723, 000850723
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | DEC 15, 1967 | 00-085-0723 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
PCB MOUNT

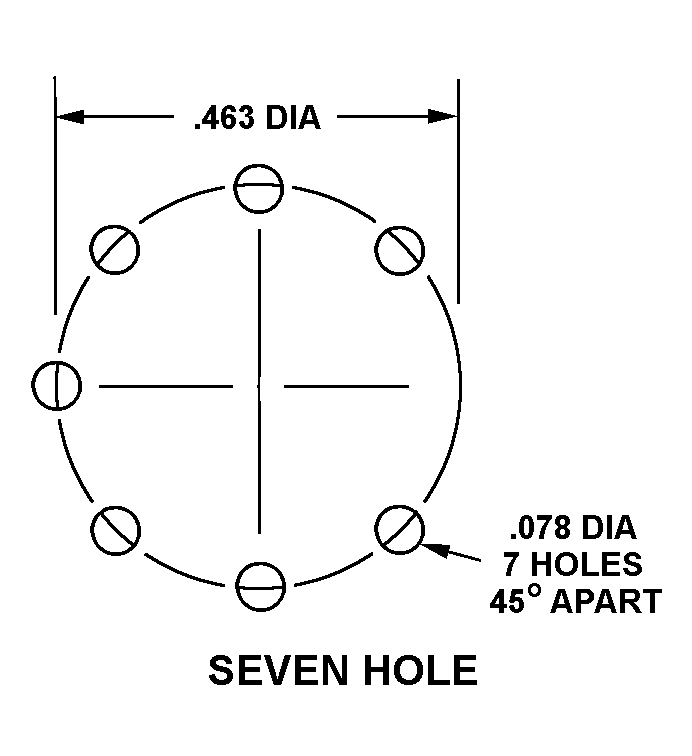

SEVEN HOLE
MINIATURE
Cross Reference | NSN 5935-00-085-0723
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 53P24301 | 71785 | CINCH CONNECTORS, INC. |
| 111-51-00-066 | 71785 | CINCH CONNECTORS, INC. |
Technical Data | NSN 5935-00-085-0723
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | MINIATURE |
| ACCOMMODATED CONTACT QUANTITY | 7 |
| CONTACT MATERIAL | BRASS |
| CONTACT SURFACE TREATMENT | TIN |
| BODY STYLE | PCB MOUNT |
| TERMINAL LENGTH | 0.250 INCHES NOMINAL |
| OVERALL HEIGHT | 0.750 INCHES NOMINAL |
| OVERALL DIAMETER | 0.750 INCHES NOMINAL |
| PROJECTION LENGTH ABOVE MOUNTING SURFACE | 0.344 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 7 TAB, SOLDER LUG |
| MOUNTING TYPE FOR WHICH DESIGNED | PRINTED CIRCUIT |
| MOUNTING METHOD | TERMINAL |
| PRINTED CIRCUIT BOARD HOLE ARRANGEMENT STYLE | SEVEN HOLE |
| POLARIZATION TYPE | CONTACT POSITION |
| SPECIFIC EQUIPMENT ACCOMMODATED | ELECTRON TUBE |
