Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-012-3811 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 365401301, 3654013-01, 4170144001, 417-0144-001, 5935-01-012-3811, 01-012-3811, 5935010123811, 010123811
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | NOV 11, 1975 | 01-012-3811 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
PCB, STANDOFF TERMINALS

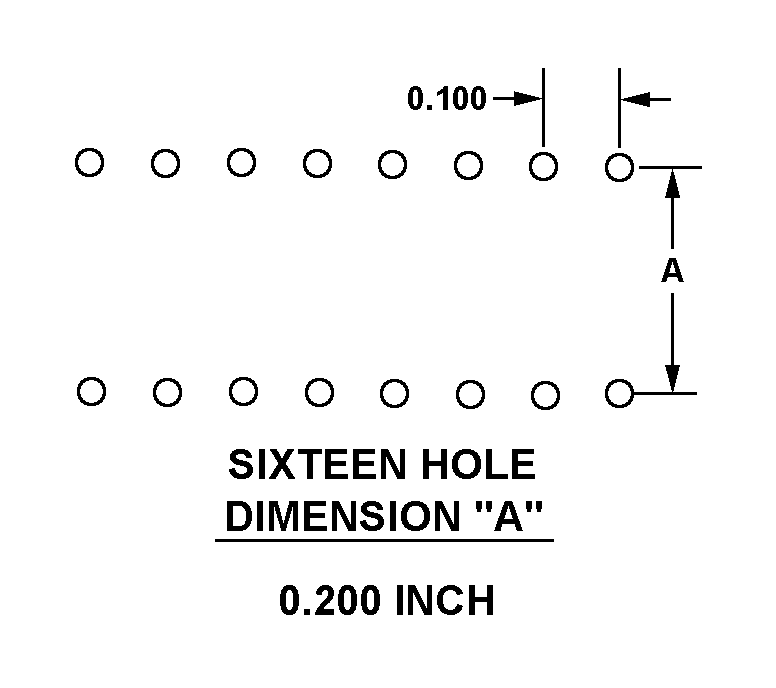

SIXTEEN HOLE 0.200 INCH
DUAL IN-LINE
Cross Reference | NSN 5935-01-012-3811
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3654013-01 | 51398 | ATRENNE COMPUTING SOLUTIONS, LLC |
| 417-0144-001 | 94756 | BOEING COMPANY, THEDBA BOEING |
Technical Data | NSN 5935-01-012-3811
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | DUAL IN-LINE |
| ACCOMMODATED CONTACT QUANTITY | 16 |
| CONTACT MATERIAL | METAL |
| CONTACT SURFACE TREATMENT | U0000 ANY ACCEPTABLE AND NICKEL |
| BODY STYLE | PCB, STANDOFF TERMINALS |
| OVERALL LENGTH | 0.850 INCHES NOMINAL |
| TERMINAL LENGTH | 0.154 INCHES NOMINAL |
| OVERALL HEIGHT | 0.414 INCHES NOMINAL |
| OVERALL WIDTH | 0.450 INCHES NOMINAL |
| BODY MATERIAL | GLASS |
| TERMINAL TYPE AND QUANTITY | 16 PIN |
| MOUNTING TYPE FOR WHICH DESIGNED | B$Z |
| MOUNTING METHOD | TERMINAL |
| PRINTED CIRCUIT BOARD HOLE ARRANGEMENT STYLE | SIXTEEN HOLE 0.200 INCH |
| FEATURES PROVIDED | CENTER SHIELD AND COMPONENT RETAINING DEVICE AND SHOCK MOUNTS |
