Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-012-7864 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 142C160G01, 142C160G01, 5935-01-012-7864, 01-012-7864, 5935010127864, 010127864
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | NOV 18, 1975 | 01-012-7864 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
TOP MOUNT W/VERTICAL CLAMP
TWO MOUNTING HOLES/SLOTS, IN-LINE

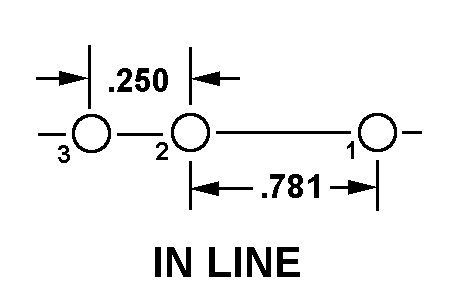

IN LINE
Cross Reference | NSN 5935-01-012-7864
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 142C160G01 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV NORTHROP GRUMMAN SYSTEMS |
| 142C160G01 | 21530 | SPENCER INDUSTRIES INC |
Technical Data | NSN 5935-01-012-7864
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | IN LINE |
| ACCOMMODATED CONTACT QUANTITY | 3 |
| MISSING CONTACT DESIGNATION | 2ND CONTACT POSITION |
| CONTACT MATERIAL | ANY ACCEPTABLE |
| CONTACT SURFACE TREATMENT | U0000 ANY ACCEPTABLE |
| BODY STYLE | TOP MOUNT W/VERTICAL CLAMP |
| OVERALL LENGTH | 2.062 INCHES NOMINAL |
| BODY MATERIAL | ANY ACCEPTABLE |
| TERMINAL TYPE AND QUANTITY | 2 PIN |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING HOLE STYLE | TWO MOUNTING HOLES/SLOTS, IN-LINE |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.500 INCHES NOMINAL |
| POLARIZATION TYPE | CONTACT POSITION |
| PRECIOUS MATERIAL | GOLD |
| PRECIOUS MATERIAL AND WEIGHT | 0.010 GOLD GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
