Part Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-01-013-7218 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: 1033477S, 5935-01-013-7218, 01-013-7218, 5935010137218, 010137218
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | DEC 07, 1975 | 01-013-7218 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

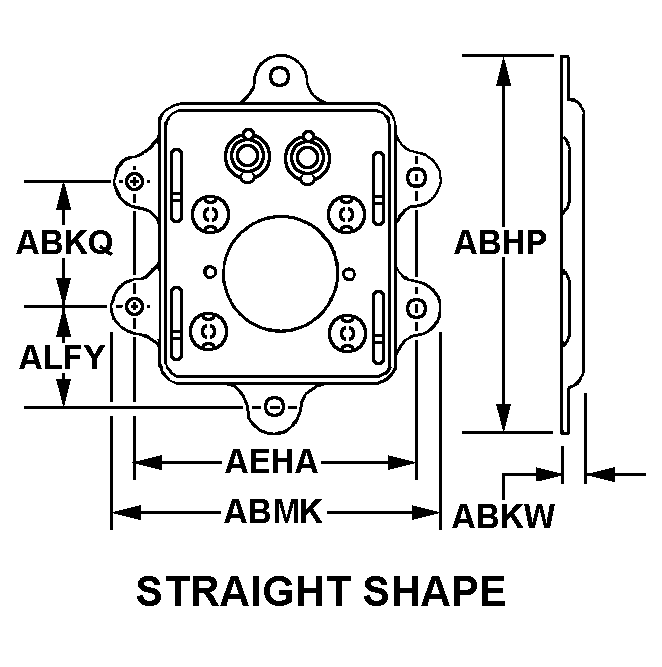

STRAIGHT SHAPE
Cross Reference | NSN 5935-01-013-7218
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1033477S | 53669 | DELPHI CONNECTION SYSTEMS, LLCDIV DELPHI CONNECTION SYSTEMS |
Technical Data | NSN 5935-01-013-7218
| Characteristic | Specifications |
|---|---|
| BODY STYLE | STRAIGHT SHAPE |
| OVERALL LENGTH | 7.427 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 6.812 INCHES NOMINAL |
| OVERALL HEIGHT | 3.540 INCHES NOMINAL |
| OVERALL WIDTH | 2.807 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 2.187 INCHES NOMINAL |
| POLARIZATION METHOD | CONTACT |
| MATING END QUANTITY | 1 |
